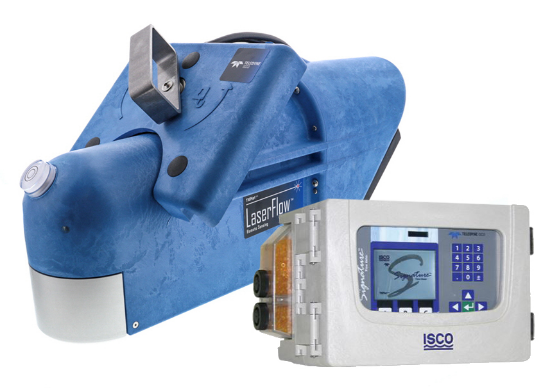

The Teledyne ISCO Signature® Flow Meter with TIENet 360 LaserFlow velocity sensor and 10 m ultrasonic level sensor is a flexible, configurable system for open channel flow monitoring and permanent discharge compliance. The Signature platform supports multiple flow measurement technologies, including bubbler, ultrasonic, submerged Doppler, and non-contacting LaserFlow, enabling accurate flow monitoring in diverse conditions. Its data integrity verification and multi-parameter logging features make it an ideal solution for compliance reporting and industrial wastewater monitoring.
Product Features
- Includes Signature Flow Meter, TIENet 360 LaserFlow velocity sensor, and ultrasonic level sensor with 10 m cable
- Supports multiple flow technologies: bubbler, ultrasonic, submerged Doppler, and LaserFlow
- Calculates flow using standard open channel conversions or user-defined equations
- Data integrity verification logs calibration changes, power outages, and key events
- Multi-parameter data logging (pH, flow, level, velocity, and more)
- Programmable outputs, triggering, and sampler enabling
- Compatible with Flowlink software for analysis, reporting, and archiving
- Multiple smart interface options: SDI-12, RS-485 Modbus input/output
- Rain gauge input included for stormwater applications
Applications
- Industrial pretreatment compliance monitoring
- Shallow flow measurement in large and small pipes
- Permit enforcement and regulatory compliance
- Wastewater treatment plant influent/effluent monitoring
- Outfall discharge monitoring
Options and Accessories
- TIENet 301 pH/Temperature Device
- TIENet 304 Contact Output Card (two outputs per card)
- TIENet 306 Sampler Interface (triggering and pacing)
- TIENet 307 Analog Input Card (two inputs per card)
- TIENet 308 Analog Output Card (two outputs per card)
- TIENet 310 Ultrasonic Level Sensor
- TIENet 330 Bubbler Module
- TIENet 350 Area Velocity Sensor
- TIENet 360 LaserFlow® Non-Contacting AV Sensor
- Battery back-up power options
- Mechanical totalizer
- Advanced cellular and Ethernet communication modules
- Mounting hardware kits
Benefits
- Ensures accurate open channel flow monitoring for compliance and reporting
- Multiple technologies allow flexible deployment across varied site conditions
- Built-in data validation protects integrity for regulatory acceptance
- Supports integration with samplers and other devices for comprehensive monitoring
- Future-ready system with modular upgrades and accessory compatibility
Why Choose the Signature LaserFlow System?
The Signature with TIENet 360 LaserFlow and ultrasonic level sensor is a premier solution for discharge compliance and environmental monitoring. Combining non-contacting LaserFlow velocity measurement with ultrasonic level sensing, it delivers unmatched accuracy, flexibility, and data security in permanent flow monitoring applications.
