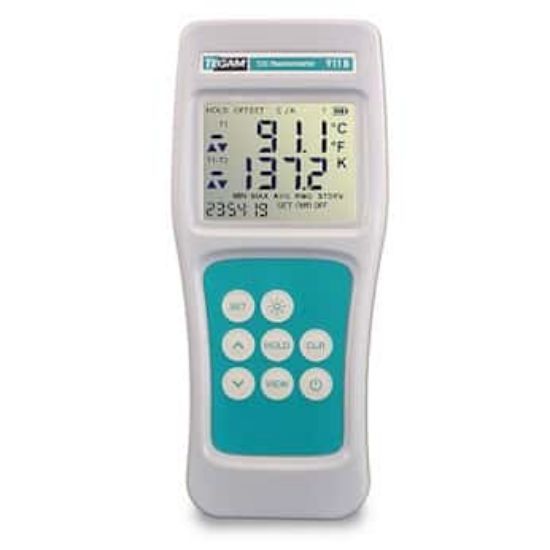

The TEGAM 911B Single-Input J/K/T/E Thermocouple Thermometer (78909-30; 911B) is a high-accuracy handheld digital thermometer for laboratory, manufacturing, service and field temperature measurements. It accepts Type J, K, T and E thermocouple probes through a single Mini-TC input and combines long battery life with built-in statistics and probe offset functions.
Key Features
- Single thermocouple input provides one Mini-TC connection for portable temperature measurement
- Supports Type J, K, T and E probes across a broad range of industrial and laboratory applications
- ±(0.04% of reading + 0.3 °C) basic accuracy matches the current TEGAM specification
- Type K range from -200 to 1372 °C covers wide-range general-purpose temperature measurement
- Type J range from -210 to 1200 °C supports common industrial thermocouple applications
- Type T range from -250 to 400 °C suits low-temperature and laboratory measurements
- Type E range from -250 to 1000 °C provides broad thermocouple measurement capability
- Probe offset function allows known probe error to be compensated to improve overall measurement uncertainty
- Real-time statistics provide minimum, maximum, average, range and standard deviation values
- HOLD function freezes the displayed reading for convenient review
- 2000-hour typical battery life from three AA batteries supports extended portable operation
- Backlit LCD provides clear temperature, units, trend and status indications
- MIL-PRF-28800F Class 2 durability supports use in demanding manufacturing and service environments
Benefits
- One instrument supports four widely used thermocouple types for flexible temperature measurement.
- Long battery life reduces battery changes during extended field or laboratory use.
- Probe offset helps compensate for probe-related error without requiring separate calculations.
- Built-in statistics provide immediate information about temperature stability and variation.
- The seamless ergonomic enclosure is comfortable for one-handed use and straightforward to clean.
- The wide operating-temperature range supports use across varied field and plant environments.
Why Choose the TEGAM 911B Thermocouple Thermometer?
The 911B combines single-channel J/K/T/E thermocouple measurement, high accuracy, 2000-hour battery life and built-in statistical functions in a compact rugged handheld instrument. John Morris Group item 78909-30 maps directly to this TEGAM configuration.
