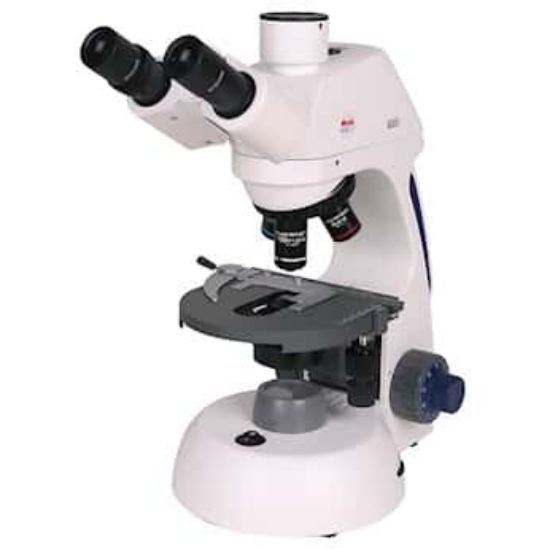

Swift Optical M17T-MP Infinity-Corrected Compound Microscope, Trinocular, Plan 4x/100xR & Phase 10x/40xR

$9,865.85

The price is inclusive of GST
Infinity-corrected optics maintain parfocality even when an auxiliary component is added€”perfect for advanced studies and professional applications
  • Ergonomic 30° inclined Siedentopf head provides operator comfort
  • 20 mm eyepieces increase field of view
  • Reversed nosepiece allows clear access to stage
  • Smooth, ball-bearing mounted quad objectives for precise positioning of objectives
  • Shielded iris diaphragm for added protection
  • All metal internal parts offer durability
  • Trinocular compound microscope includes infinity-corrected plan 4x (0.10 N.A.), infinity phase 10x (0.25 N.A.), infinity phase 40xR (0.65 N.A.), and infinity-corrected plan 100xR oil immersion (1.25 N.A.) objectives
  • Comes with phase contrast 5 position Abbe condenser N.A. 1.25 (BF, DF, Phase 1, Phase 2, Phase 3)
  • Attach any C-mount ready imaging device using an optional C-mount adapter
  • Limited lifetime warranty
The M17 series compound microscopes feature infinity-corrected optics that allow one or more auxiliary components (illuminators or polarizer) to be added without altering the alignment between the objective and tube lens. Even with added components infinity-corrected optics produce exactly 1x magnification allowing easy comparison between specimens.

These research level microscopes feature a 30° inclined eyepieces with diopter and interpupilllary adjustment from 54 to 76 mm. A bright 3 W LED illumination system and widefield 20 mm eyepieces provide a sharp image. The 100xR objective is spring-loaded and sealed to protect optics from contact or oil damage. Optically coated Abbe 1.25 N.A. brightfield condenser allows maximum transmission and enhanced contrast. Large 14.2 x 14 mm (5-3/4" x 5-1/2"), low-drive mechanical stage offers precise scanning of your specimen.
Includes: Power supply adapter with US plug, dust cover, and user manual.
