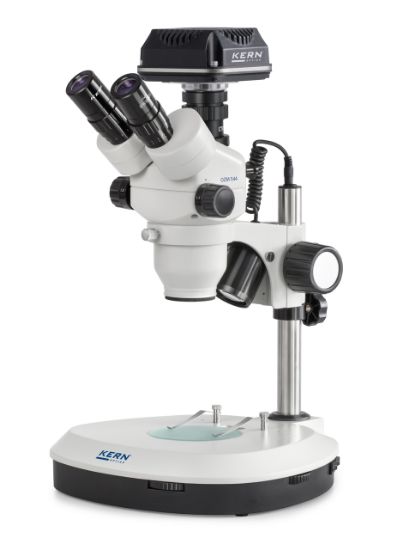

- The excellent OZM range is now also available to you as a comprehensive digital solution for your live investigations. Optionally available with an adapted tablet or C-mount camera. Naturally, the appropriate C-mount adapter is included with the delivery
- The KERN OZM-S is a range of excellent stereo zoom microscopes with above-average optical features
- The extraordinarily strong and continuously dimmable 3W LED incident and transmitted illumination ensures a flexible and particularly good level of illumination for your sample
- With its large working distance, an extra large field of view and its brilliant resolution, the KERN OZM-S provides sharp, high-contrast, colour-true images.
- The adapted C-mount camera is available in different versions and can be used anywhere
- For detailed information on the individual components, see the relevant product description of the individual item
- A large selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessories
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of the delivery
Technical dataMicroscope OZM-5
- Optical system: Greenough optics
- Brightness adjustable (separate)
- Lens barrel 45° tilt
- Magnification ratio: 6,4:1
- Light distribution 50:50
- Eye distance: 52.0 - 76.0 mm
- Dioptre compensation (both sides)
- Overall dimensions W×D×H 330×285×440 mm
- Net weight approx. 4,7516 kg
- Eyepieces: HSWF 10x / 23.0 mm
- Visual field (mm): 32.8 - 5.1
- Objective: 0,7 x - 4,5 x
- Stand: Pillar
- Illumination: 3W LED (transmitted), 3W LED (incident)
