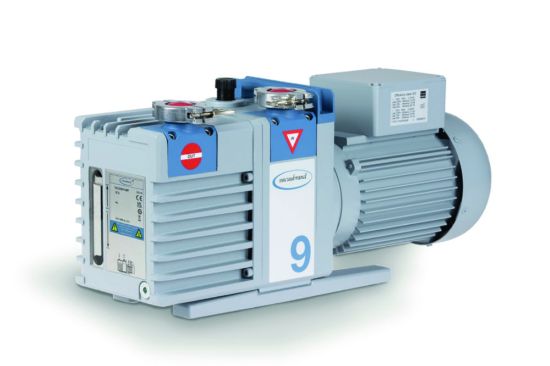

Rotary vane pump RE 9, one-stageThe powerful rotary vane pumps are ideal for fast evacuation of vessels and at higher gas flow rates. Typical applications are lyophilisation, fine vacuum distillation, and drying chambers.-Very high flow rat
Depth503 mm
Dimensions (WxDxH)156 x 503 x 240 mm
Flow rate (50/60Hz) L / min.148.33 / 169.90
Height240 mm
IP codeIP 40
Noise level52 db(A)
Number of steps1
Plug typeCEE
Power Supply230 V, 50 ... 60 Hz
Rated capacity300 W
TypeRE 9
Type of auxiliary energymains connection
Ultimate Vacuum0.1 mbar
Weight22 kg
Width156 mm
