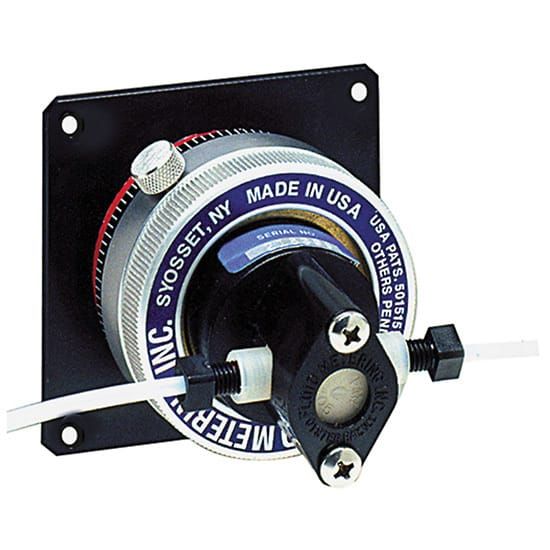

The Fluid Metering RH Pump Head, Low Flow, Tefzel (RH1CTCLF) is an FMI pump head for precise low-flow fluid metering. It is identified as a Tefzel FMI pump head and uses the RH low-flow configuration with 1/4-28 female low dead volume ports for micro bore tubing connections.
Key Features
- Brand: Fluid Metering, Inc. (FMI)
- Model / Part Number: RH1CTCLF
- Configuration Code: RH1-CTC-LF
- Product Type: RH low-flow FMI pump head
- Material: Tefzel
- Piston Size Code: RH1
- Piston Size: 1/4 inch diameter
- Dispense Volume Resolution: 0.005 to 0.1 mL/rev
- Low-Flow Option: LF low dead volume head, under 50 mL/min
- Port Type: 1/4-28 female low dead volume ports
- Tubing Suitability: 1/16 inch or 1/8 inch outside diameter micro bore tubing and fittings
- Operating Pressure Range: 0 to 25 psig / 0 to 1.7 bar
- Operating Motor Speed: 0 to 2,600 rpm
- Dispensing Repeatability: CV of less than or equal to 0.5%
Benefits
- Supports controlled low-flow metering where small fluid volumes need to be handled accurately.
- Low dead volume porting helps minimise retained liquid in compatible fluid circuits.
- Valveless pump-head design helps reduce clogging points, leaks and service requirements.
- Fully adjustable displacement supports fine control from zero to maximum output.
- Tefzel material selection supports use in suitable chemically demanding fluid-handling setups.
Why Choose the Fluid Metering RH Pump Head, Low Flow, Tefzel (RH1CTCLF)?
The Fluid Metering RH Pump Head, Low Flow, Tefzel (RH1CTCLF) is suited to precision metering systems requiring a compact low-flow pump head with low dead volume connections. John Morris Group supplies Fluid Metering pump solutions for laboratory, analytical, OEM and industrial applications across Australia and New Zealand.
