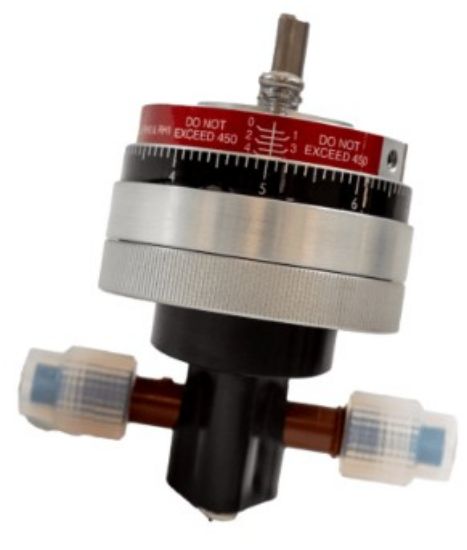

The Fluid Metering RH Pump Head, 3/16 Inch Ceramic Piston (RH0CTC) is an RH series pump head for precise valveless piston fluid metering. This RH0CTC configuration is listed with a 3/16 inch ceramic piston, while FMI’s RH platform supports small displacement adjustment from zero to maximum output. The RH pump head design is suited to laboratory, analytical, industrial and OEM fluid handling applications where repeatable metering is required.
Key Features
- Brand: Fluid Metering
- Model / Part Number: RH0CTC
- Product Type: RH pump head
- Series: RH
- Configured Variant: 3/16 inch ceramic piston pump head
- JMG Reference: Ref 2
- Piston Size: 3/16 inch diameter
- Piston Material: Ceramic
- Cylinder Liner: Ceramic cylinder liner
- Dispense Volume Resolution: 0.003 to 0.05 mL/rev, dependent on pump head and motor setup
- Flow Rate Range: 0.003 to 130.0 mL/min, dependent on pump head and motor setup
- Operating Pressure Range: 0 to 60 psig (0 to 4.1 bar)
- Cylinder Casing Options: PVDF, ETFE and polypropylene options listed for RH pump heads
- Operating Temperature Range: PVDF and ETFE 0 to 100°C; polypropylene 0 to 80°C
- Operating Motor Speed: 0 to 2600 rpm
- Stroke Adjustment: Adjustable from zero to maximum displacement
- Tubing Connection: RH pump ports accept 1/4 inch outside diameter tubing and/or tubing adapters
- Mounting Guidance: Recommended with motor at 12 o’clock and pump head at 6 o’clock for maximum performance
- Pump Design: Valveless pump head with a single moving part
- Drive Compatibility: Compatible with Fluid Metering RH pump drive modules
- Customisation: Flush ports, isolation glands and low-flow 1/4-28 ports are available on RH pump heads
- Regulatory Compliance: RoHS compliant and REACH compliant
Note: Final flow rate, pressure and dispense volume depend on the selected RH drive module, pump setup and application conditions.
Benefits
- Supports precise metering where repeatable small-volume fluid handling is required.
- Provides a 3/16 inch ceramic piston format for RH pump head replacement or system configuration.
- Helps reduce clogging and service points through a valveless piston-based pumping design.
- Allows controlled output adjustment from zero to maximum displacement for flexible fluid handling.
- Supports integration with compatible Fluid Metering RH pump drive modules.
- Provides practical tubing connection and mounting guidance for reliable RH pump setup.
Why Choose the Fluid Metering RH Pump Head, 3/16 Inch Ceramic Piston (RH0CTC)?
The Fluid Metering RH Pump Head, 3/16 Inch Ceramic Piston (RH0CTC) combines RH series valveless piston design with a confirmed 3/16 inch ceramic piston configuration. Source it through John Morris Group for local support with pump head replacement, configuration checks and compatible Fluid Metering drive matching.
