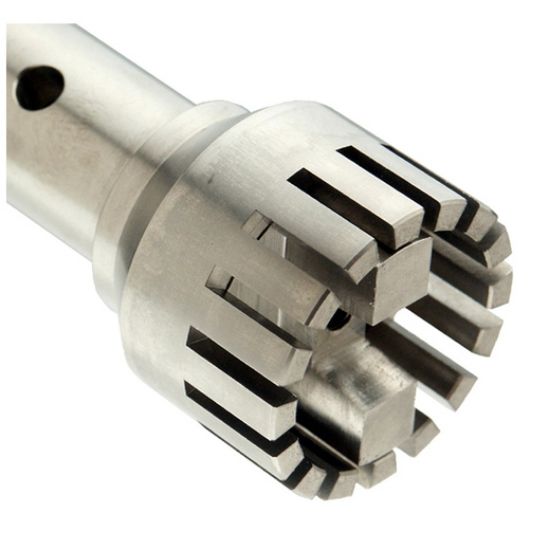

The Revvity Flat Bottom Generator Probe, 30 x 195 mm, Fine (150-30NA-195) is a 316 stainless steel mixer-style probe for processing sample volumes from 75 mL to 10 L. Its flat-bottom, narrow-window stator allows fine to medium samples to pass through the processing windows during rotor-stator homogenisation.
Key Features
- Fine narrow-window stator design, allowing fine to medium samples to pass through the processing windows
- Processes sample volumes from 75 mL to 10 L, supporting larger-volume laboratory homogenisation
- Large 30 x 195 mm probe format, with a 30 mm diameter and 195 mm length
- Durable 316 stainless steel construction, providing a reusable probe for compatible processing systems
- Supplied with PTFE upper and lower bearings, supporting the generator probe assembly
- Compatible with Omni mixer-style systems, including the Omni macro, Omni macro-ES and Omni mixer
- Autoclavable as a complete probe, supporting routine decontamination between processing runs
- Easily disassembled for cleaning, allowing direct access to individual probe components
Note: Optional stainless steel upper bearings can extend bearing life but are not autoclavable. For research use only; not for use in diagnostic procedures.
Benefits
- Supports larger-volume sample preparation across a verified range of 75 mL to 10 L.
- Allows fine to medium sample materials to enter the narrow stator windows for controlled processing.
- Provides flexible cleaning through whole-probe autoclaving or component-level disassembly.
- Supports large-volume emulsions, suspensions and dispersions involving liquid/liquid or solid/liquid samples.
- Provides verified compatibility across Omni macro, Omni macro-ES and Omni mixer homogenisation systems.
Why Choose the Revvity Flat Bottom Generator Probe, 30 x 195 mm, Fine (150-30NA-195)?
The Revvity Flat Bottom Generator Probe, 30 x 195 mm, Fine (150-30NA-195) combines a narrow-window stator with a large sample capacity for processing fine to medium materials. Its 316 stainless steel construction, verified Omni system compatibility and flexible cleaning options make it a practical choice for reusable large-volume homogenisation workflows. John Morris Group can assist with the probe and compatible Revvity homogenisation equipment.
