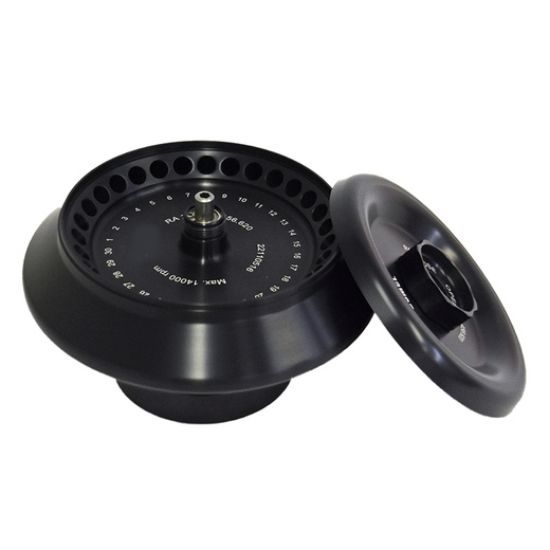

The Revvity Microcentrifuge Rotor, 30 x 2 mL, Metal Lid (228451) is an RA 30/2 fixed-angle rotor designed to hold up to 30 x 1.5 mL or 2.0 mL microcentrifuge tubes. Supplied with a metal screw-on lid, it is compatible with Revvity CF-260 and CF-350 centrifuges and can also accommodate 0.2 mL or 0.5 mL PCR tubes using optional adapters.
Key Features
- High-capacity 30-position format, accommodating up to 30 microcentrifuge tubes per run
- Supports 1.5 mL and 2.0 mL tubes, providing compatibility with two common microcentrifuge tube volumes
- Optional PCR tube compatibility, accepting 0.2 mL or 0.5 mL PCR tubes using adapters 284351 or 382349
- Metal screw-on rotor lid, covering the tube positions during centrifugation
- Fixed 45° operating angle, with a verified rotor radius of 98 mm
- Maximum performance on the CF-260, reaching 14,000 rpm and 21,470 rcf
- Maximum performance on the CF-350, reaching 13,000 rpm and 18,520 rcf
- Accommodates tubes up to 11 x 40 mm, providing defined dimensional compatibility
- Compatible with two Revvity centrifuge platforms, including the CF-260 and CF-350
Note: Optional adapters 284351 or 382349 are required when using compatible 0.2 mL or 0.5 mL PCR tubes. For research use only; not for use in diagnostic procedures.
Benefits
- Processes up to 30 microcentrifuge tube samples within one organised centrifugation run.
- Extends tube-format flexibility through optional support for smaller PCR tubes.
- Allows laboratories to use the same rotor across compatible CF-260 and CF-350 centrifuges.
- Provides clearly defined speed and centrifugal-force limits for each compatible platform.
- Supports correct rotor selection through verified tube dimensions, capacity, angle and radius.
Why Choose the Revvity Microcentrifuge Rotor, 30 x 2 mL, Metal Lid (228451)?
The Revvity Microcentrifuge Rotor, 30 x 2 mL, Metal Lid (228451) provides a manufacturer-specified solution for processing up to 30 x 1.5 mL or 2.0 mL microcentrifuge tubes. Its optional PCR tube compatibility and support for both CF-260 and CF-350 centrifuges make it a flexible choice for laboratories working across multiple small-tube formats. John Morris Group can assist with the rotor, compatible adapters and Revvity centrifuge equipment.
