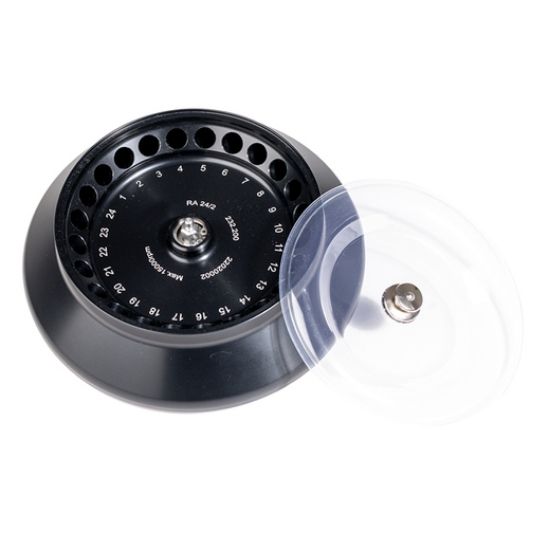

The Revvity CF-220 Microcentrifuge Rotor, 24 x 1.5/2.0 mL (437480), is an RA 24/2 angle rotor supplied with a transparent plastic lid. It accommodates up to twenty-four 1.5 mL or 2.0 mL microcentrifuge tubes and supports selected 0.2 mL and 0.5 mL PCR tubes when used with optional adapters. The rotor operates at up to 15,500 rpm and 23,100 rcf in a compatible CF-220 centrifuge.
Key Features
- Twenty-four-position tube capacity, accommodating 24 x 1.5/2.0 mL microcentrifuge tubes
- RA 24/2 angle-rotor design, configured specifically for compatible CF-220 centrifuges
- Maximum speed of 15,500 rpm, supporting high-speed microcentrifuge tube processing
- Maximum centrifugal force of 23,100 rcf, providing the manufacturer-specified operating limit
- Fixed 45° tube angle, with an 86.0 mm rotor radius
- Defined tube fit, accepting tubes with maximum dimensions of 11 x 40 mm
- Optional PCR tube compatibility, supporting 0.2 mL or 0.5 mL tubes with adapters 283451 or 283349
- Transparent plastic lid included, supplied as part of the complete rotor configuration
Note: PCR tube adapters are optional and supplied separately. For research use only and not for use in diagnostic procedures.
Benefits
- Processes up to twenty-four standard microcentrifuge tubes in one rotor load.
- Extends CF-220 flexibility to selected 0.2 mL and 0.5 mL PCR tube formats using optional adapters.
- Supports compatible high-speed workflows at up to 15,500 rpm and 23,100 rcf.
- Provides clear tube-size and adapter requirements for selecting compatible sample vessels.
Why Choose the Revvity CF-220 Microcentrifuge Rotor, 24 x 1.5/2.0 mL (437480)?
The Revvity 437480 provides a manufacturer-specified RA 24/2 rotor for processing up to twenty-four 1.5 mL or 2.0 mL microcentrifuge tubes with the CF-220 centrifuge. Its optional PCR tube adapter compatibility, transparent lid and verified high-speed operating limits provide flexibility for small-volume centrifugation workflows. John Morris Group supplies Revvity centrifuges and compatible centrifuge accessories throughout Australia.
