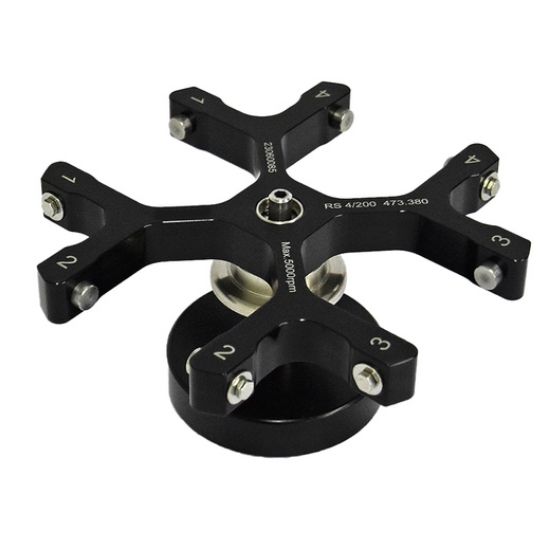

The Revvity CF-350 4-Place 200 mL Swing-Out Rotor (383672) is an RS 4/200 rotor supporting up to four 200 mL centrifuge tubes when configured with the required buckets, lids and tube-specific inserts or adapters. It operates at speeds up to 4,400 rpm and produces a maximum centrifugal force of 3,440 rcf.
Key Features
- Four-place RS 4/200 configuration, providing four positions for larger-volume centrifugation
- Maximum capacity of 4 x 200 mL, supporting up to 800 mL of nominal tube capacity per rotor
- Full 90° swing-out operation, positioning compatible tubes horizontally during centrifugation
- Maximum speed of 4,400 rpm, producing centrifugal force up to 3,440 rcf
- Accommodates tubes up to 57 x 105 mm, with a verified rotor radius of 159 mm
- Defined acceleration and braking performance, with minimum times of 21 seconds and 22 seconds respectively
- Designed specifically for CF-350 centrifuges, providing manufacturer-confirmed instrument compatibility
- Modular bucket and insert configuration, allowing the rotor to support different vessel formats using separately selected accessories
- Autoclavable rotor construction, supporting routine laboratory decontamination procedures
Note: B200 buckets (424173), BL200 bucket lids (412627) and suitable tube-specific inserts or adapters are required and purchased separately. The official compatibility table lists BL200 lids as non-autoclavable.
Benefits
- Processes up to four larger-volume centrifuge tubes within one organised run.
- Provides horizontal tube positioning through the 90° swing-out movement.
- Supports repeatable run planning through defined speed, force, acceleration and braking performance.
- Allows laboratories to configure the same rotor for multiple tube formats using compatible B200 buckets and inserts.
- Expands the CF-350 platform for larger-volume centrifugation workflows.
Why Choose the Revvity CF-350 4-Place 200 mL Swing-Out Rotor (383672)?
The Revvity CF-350 4-Place 200 mL Swing-Out Rotor (383672) provides a manufacturer-specified solution for processing up to four 200 mL centrifuge tubes at speeds up to 4,400 rpm. Its modular bucket system, verified performance and dedicated CF-350 compatibility make it a flexible option for larger-volume centrifugation. John Morris Group can assist with the rotor, B200 buckets, lids, inserts and compatible Revvity CF-350 centrifuge equipment.
