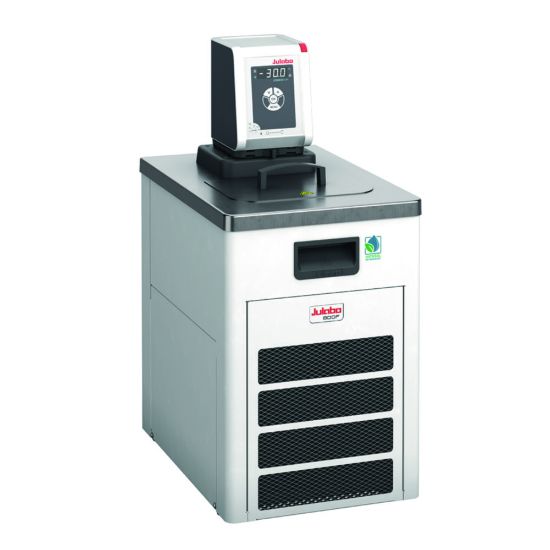

Refrigerated circulator CORIO™ CP-800FRefrigerated circulators with enhanced, flexible pump performance and a working temperature range up to 200 °C. Temperature control is possible either in the internal bath or in a connected external app
Bath opening mm180 x 130
Bath tank depth mm150
Capacity of the bath litres5 ... 7.5
Cooling capacity kW at 20/0/-20°C0.84 / 0.74 / 0.39
Delivery pressure, max. bar0.7
Ext. depth470 mm
Ext. height700 mm
Ext. width330 mm
External dimensions (WxDxH)330 x 470 x 700 mm
Flow rate L / min.8 ... 27
Heating capacity2 kW
IP codeIP 21
Plug typeEU
Power Supply200 ... 230 V, 50 ... 60 Hz
Temp. range °C-40 ... 200
Temp. stability±0,03 °C
TypeCP-800F
Type of auxiliary energymains connection
