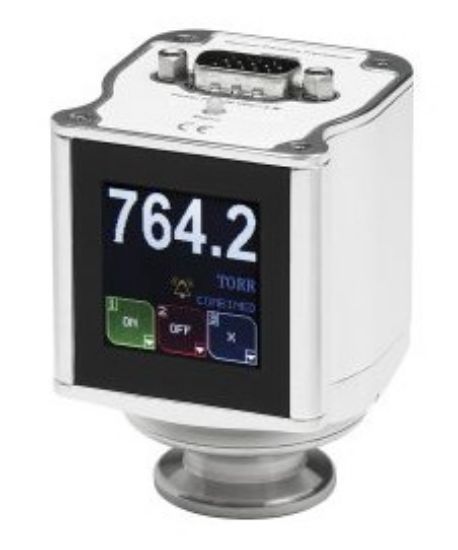

The MKS Vacuum Transducer MicroPirani-Absolute Piezo with display combines advanced MicroPirani and absolute piezoelectric sensing technologies to deliver highly accurate, stable, and repeatable wide-range vacuum pressure measurements. Designed with an NW16 ISO-KF flange and RS485 digital communication interface, this compact transducer is ideal for demanding vacuum applications where performance and real-time monitoring matter.
Product Features
- Dual sensor technology: MicroPirani and absolute Piezo deliver superior accuracy and stability
- Wide measurement range from 1x10^-5 Torr to 1500 Torr
- Gas-independent absolute pressure measurement from 11 to 1500 Torr
- MicroPirani sensor element built from a 1 mm² silicon chip allows precise low-volume measurement
- Piezo sensor measures absolute pressure directly, ensuring gas-independent operation
- Minimized convection effects enable mounting in any orientation without accuracy loss
- Digital display for immediate local readout and monitoring
- RS485 digital communication interface for transducer parameter setup and real-time pressure data
- Analog pressure output of 1 VDC/decade compatible with external equipment
- Selectable analog outputs and curves via the digital user interface
- Three mechanical relays for process control tasks such as vacuum pump and valve interlocking
- Each set point assignable to piezo measurement or combined MicroPirani/Piezo measurement
- Compact design reduces system footprint, allowing for more space-efficient vacuum systems
- Faster response time and better repeatability compared to traditional thermal conductivity gauges
Benefits
- Accurate, stable, and repeatable pressure measurement across a broad vacuum range
- Gas-independent operation ensures consistent readings regardless of gas type
- Compact size helps save space in system designs and installations
- Real-time digital display and remote monitoring via RS485 enhance usability and process control
- Fast response supports precise, dynamic vacuum process control
- Integrated relays automate equipment interlocking for safety and efficiency
Why Choose the MKS Vacuum Transducer MicroPirani-Absolute Piezo?
Engineered for high-performance vacuum applications, the MKS Vacuum Transducer MicroPirani-Absolute Piezo with display combines dual sensing technologies, gas-independent accuracy, and fast response time in a compact, space-saving design. With RS485 communication, analog outputs, and built-in mechanical relays, it delivers flexibility and control for advanced process monitoring and automation in research and industrial environments.
