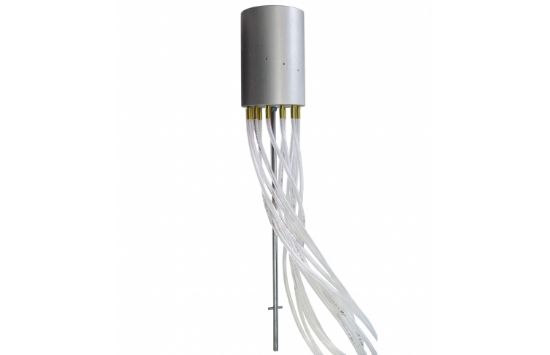

The HM 170.23 model is used to determine the pressure distribution on a cylinder immersed in a flow. For this purpose there are measuring holes in the surface of the cylinder; these holes are arranged in such a manner that mutual interaction is virtually excluded. The cylinder is connected to a mounting rod at one end, the connections for the pressure lines are also located here. The model is placed in the force sensor. The static pressures are displayed on the tube manometers HM 170.50 or in the electronic pressure measurement HM 170.55.
