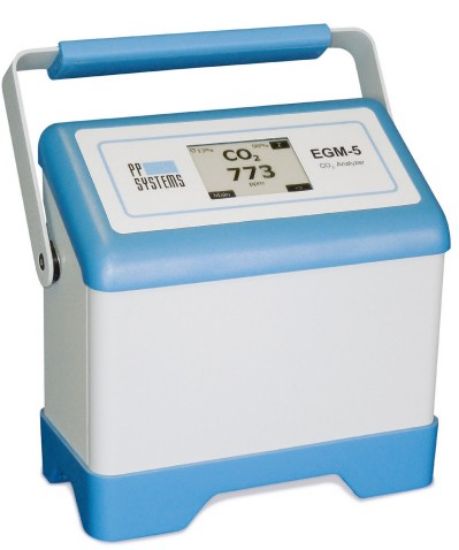

The PP Systems EGM-5 CO2 Analyzer, High Range (AGA561) is a portable CO2 gas analyzer for field and laboratory measurement applications. This high-range configuration is designed for CO2 measurement from 30,000 to 100,000 ppm and combines NDIR analysis, Auto-Zero stability, rechargeable battery operation and built-in air sampling.
Key Features
- Measurement type: Non-dispersive infrared CO2 analysis
- High-range configuration: 30,000 to 100,000 ppm CO2
- Available CO2 ranges: 0 to 1,000, 2,000, 5,000, 10,000, 20,000, 30,000, 50,000 and 100,000 ppm
- Accuracy: <1% of span concentration over the calibrated range
- Linearity: <1% throughout the range
- Pressure compensation range: 55 to 115 kPa
- Warm-up time: Approximately 15 minutes
- Sampling rate: Sample data averaged and output every 1.0 seconds (1 Hz)
- Gas flow rate: 200 to 500 cc/min; 280 to 340 cc/min optimal
- Sampling pump: Integral air sampling pump for dynamic and static sampling
- Display: 2.7 in electronic paper touch display, 264 x 176 pixel resolution
- Data storage: USB flash drive port for data storage in multiple formats
- Power: Internal rechargeable 7.4V, 8.7 Ah Li-Ion battery, up to 16 hours continuous use
- Dimensions: 20 cm (L) x 20 cm (H) x 10 cm (W), enclosure only
Note: CO2 measurement range must be specified at time of order. This item is the high-range configuration.
Benefits
- Supports demanding field measurements with a compact 1.5 kg enclosure and rechargeable battery operation.
- Auto-Zero stability helps reduce drift caused by sample cell contamination, detector ageing and electronics changes.
- Temperature and pressure compensation support reliable CO2 readings across changing field conditions.
- Built-in sampling pump and electronic flow monitoring support both dynamic and static measurement methods.
- USB storage and Mini USB connectivity make data capture and transfer practical for field and laboratory workflows.
- Optional chambers and sensors expand the analyzer for soil CO2 efflux, net canopy CO2 flux and environmental monitoring.
Why Choose the PP Systems EGM-5 CO2 Analyzer, High Range (AGA561)?
Choose the PP Systems EGM-5 CO2 Analyzer, High Range (AGA561) for portable high-range CO2 measurement with NDIR analysis, Auto-Zero stability and field-ready operation. John Morris Group supplies PP Systems environmental gas analysis instruments for laboratories, field researchers and plant science teams requiring dependable CO2 measurement capability.
