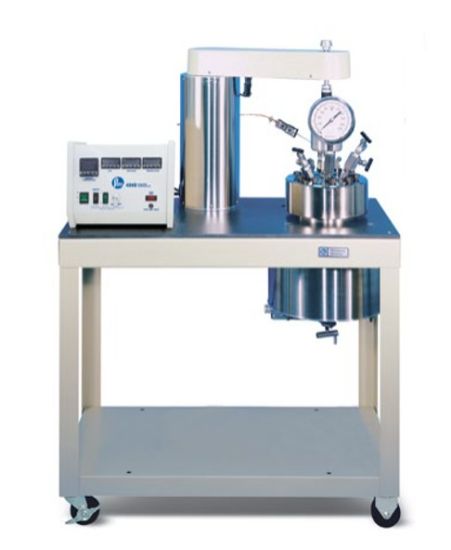

The Parr Custom 4551 Reactor System is a high-performance moveable head reactor designed for demanding laboratory and industrial chemical processes. Constructed from alloy 400 (Monel) for all wetted parts, this system is rated for a maximum allowable working pressure of 2000 psi and temperatures up to 350 °C. Engineered for precision and safety, it includes a range of advanced features for stirring, heating, and process monitoring.
Product Features
- Moveable head vessel mounted on a cart floor stand
- Vessel MAWP: 2000 psi at up to 350 °C
- Head, cylinder, and internal wetted parts constructed of alloy 400 (Monel)
- External valves and fittings for vapor constructed of alloy 400 (Monel)
- Magnetic drive assembly in alloy 400 (Monel)
- PTFE flat gasket with hinged bolted split ring closure
- Cylinder: ~3.75 L, 6-inch ID, 8.6-inch inside depth, 1/2 NPT liquid outlet port
- Electric calrod heater assembly, 230V
- Explosion-proof variable speed DC motor, 1/2 hp, overhead belt and pulley drive, 600 rpm, Class 1 Div I Group D
- ASME Certification included
What’s Included
- Magnetic drive, 60 in-lbs torque, with bracketed stirrer shaft and turbine-type impeller
- Pressure gauge, 0–1000 psi
- Safety rupture disc of alloy 600, rated 1000 psi at room temperature
- Gas release valve
- Sampling valve and gas inlet valve mounted over common dip tube
- Thermowell with type J thermocouple
- 3/4 NPT port with plug (for level sensor compatibility)
- 1/2 NPT port with plug (for liquid return line)
- Reflux condenser assembly, 14-inch tube-in-tube, 1/2 OD process tube
Benefits
- Robust alloy 400 construction ensures corrosion resistance and durability
- High-pressure and high-temperature operation capability for advanced chemical processes
- Explosion-proof motor and safety devices provide secure operation in hazardous environments
- Integrated magnetic drive and advanced head features allow precise stirring and process control
- ASME certification guarantees compliance with industry safety standards
Why Choose Parr Custom 4551 Reactor System, 1 Gal, Alloy 400, 230V, Explosion Proof Motor, ASME Certified?
The Parr Custom 4551 Reactor System offers unparalleled safety, precision, and versatility for laboratory and industrial chemical reactions, combining robust alloy construction, high-pressure capability, and advanced process control features for demanding applications.
