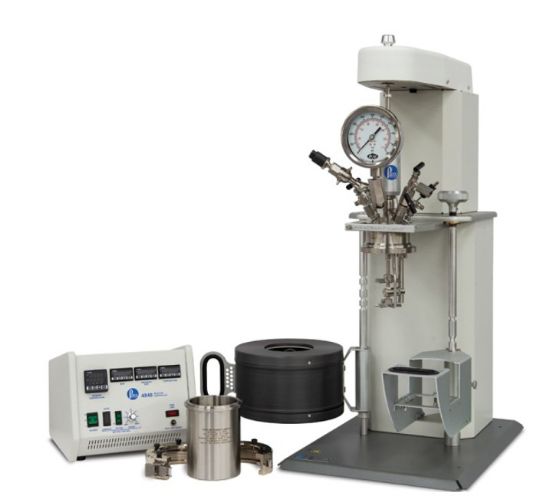

Parr 4520 Series reactor with the following specifications: 1000 ml fixed head bench top reactor. Vessel MAWP rating: 1900 PSI [131 bar] at up to 350°C. Head, cylinder, magnetic drive, and internal wetted parts in direct contact with process liquid are constructed of Hastelloy C-276. Vapor-containing external valves and fittings are constructed of stainless steel. PTFE flat gasket stable up to 350°C.
Product Features
- 1000 ml fixed head bench top reactor
- Vessel MAWP rating: 1900 PSI [131 bar] at up to 350°C
- Head, cylinder, magnetic drive, and internal wetted parts made of Hastelloy C-276
- Vapor-containing external valves and fittings made of stainless steel
- PTFE flat gasket stable up to 350°C
- Head includes magnetic drive (16 in-lb) with stirrer shaft, pressure gauge 0-2000 psi, gas release valve, double valve assembly, safety rupture disc, and thermocouple Type J
- Bench top mantle heater, 230V
- Variable speed motor, 1/4 hp
- 4848 reactor controller with PID temperature control, ramp and soak programming, manual speed adjustment knob (0-600 rpm), 230V electrical
- Serpentine cooling coil made of Hastelloy C-276
- ASME certification
Benefits
- Precise temperature and speed control for lab-scale chemical reactions
- Durable materials resistant to corrosion and high temperatures
- Compact benchtop design suitable for laboratory environments
- Comprehensive safety features including rupture disc and gas release valve
Why Choose Parr 4520 Series Bench Top Reactor?
The Parr 4520 Series bench top reactor provides a reliable, high-performance solution for laboratory chemical reactions. With ASME certification and robust construction from Hastelloy C-276, it ensures safety, durability, and precision for demanding research applications.
