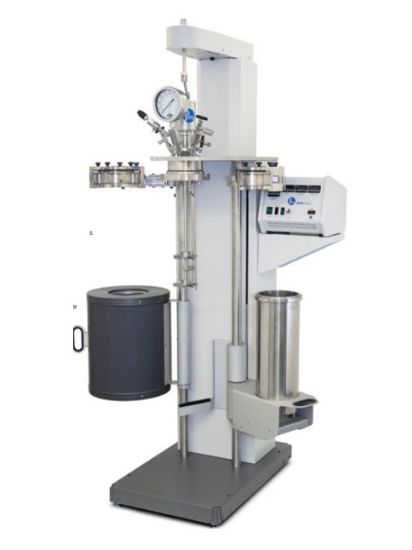

Parr 4554-2GAL Fixed Head Reactor is a 2-gallon Inconel 600 reactor designed for high-pressure, high-temperature chemical reactions with robust construction, ASME certification, and advanced control features.
Product Features
- 2-Gallon Inconel 600 Fixed Head Reactor on a stationary floor stand with pneumatic lift
- Vessel MAWP Rating: 1900 PSI at 350°C
- Head, cylinder, magnetic drive, and internal wetted parts constructed of Inconel 600
- Vapor-containing external valves and fittings made of Stainless Steel
- PTFE Flat Gasket stable up to 350°C
- Head includes: Extra Heavy Duty Footless Magnetic Drive (Inconel 600, 120 in-lb) with stirrer shaft, Pressure Gauge 0–2000 psi, Gas Release Valve, Double Valve Assembly (inlet and sampling valve), Safety Rupture Disc, Thermocouple Type J
- Moveable cart with heater, 230V
- Variable speed motor, 1/2 hp
- 4848B Expanded Reactor Controller with PID temperature control, ramp and soak programming, manual speed adjustment knob (0–600 rpm), 230V electrical supply
- ASME Certification
- Serpentine Cooling Coil made of Inconel 600
Benefits
- High-pressure and high-temperature capability ensures safe and reliable reactions
- Durable Inconel 600 construction provides corrosion resistance and long service life
- Advanced reactor controller with PID and ramp/soak programming for precise reaction control
- Moveable cart and integrated heater simplify operation and positioning
- ASME certification ensures compliance with international safety and quality standards
Why Choose Parr 4554-2GAL Fixed Head Reactor?
This reactor combines robust Inconel 600 construction, advanced PID temperature control, and ASME certification to provide a safe, reliable, and precise solution for high-pressure, high-temperature laboratory and pilot-scale chemical reactions.
