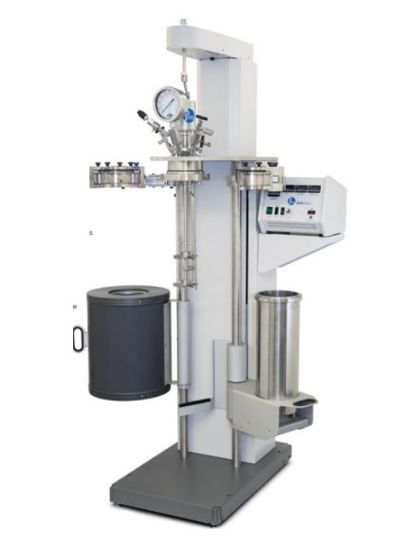

The Parr 2 Gallon Inconel 600 Fixed Head Reactor on a stationary floor stand features a pneumatic lift for easy operation and precise handling. Designed for high-pressure and high-temperature processes, this reactor ensures reliability, durability, and safety in laboratory and industrial applications.
Product Specifications
- Vessel MAWP Rating: 1900 PSI at 350°C
- Head, cylinder, magnetic drive, and internal wetted parts constructed of Inconel 600
- External vapor-containing valves and fittings made of Stainless Steel
- PTFE flat gasket stable up to 350°C
- Head includes:
- Heavy Duty Footless Magnetic Drive, Inconel 600, 60 in-lb with stirrer shaft
- Pressure gauge 0–2000 psi
- Gas release valve
- Double valve assembly with inlet valve and sampling valve over dip tube
- Safety rupture disc
- Thermocouple, Type J
- Moveable cart with heater, 230V
- Variable speed motor, 1/2 hp
- 4848B Expanded Reactor Controller:
- PID temperature control with ramp and soak programming
- Manual speed adjustment knob, 0–600 rpm
- 230V electrical
- ASME certified for safe operation
- Serpentine Cooling Coil made of Inconel 600
Benefits
- High durability with Inconel 600 construction for corrosive and high-temperature processes
- Precise process control with PID controller and variable speed motor
- Safety ensured with pressure gauge, rupture disc, and gas release valve
- Easy handling with pneumatic lift and moveable cart with heater
- ASME certification provides compliance assurance
Why Choose Parr 2 Gallon Inconel 600 Fixed Head Reactor with Pneumatic Lift, 230V, 4848B Controller, ASME Certified?
Ideal for laboratory and industrial applications requiring high-pressure and high-temperature operations, this Parr reactor offers robust performance, precise control, and exceptional safety in a compact, movable design.
