MICRO VESS 22ML, MANUAL VALVE
$5,462.50
The 1109 oxygen bomb used is the smallest of all Parr oxygen bombs. This 22 ml bomb will handle samples ranging from 25 to 200 milligrams, liberating up to 1200 calories when burned in oxygen, using initial oxygen pressures up to 35 atmospheres. Outputs up to 2400 calories can be accommodated if the sample is self-oxidizing, provided it is burned in an inert atmosphere and does not produce gas. Combustion in oxygen must be limited to a maximum output of 1200 calories.

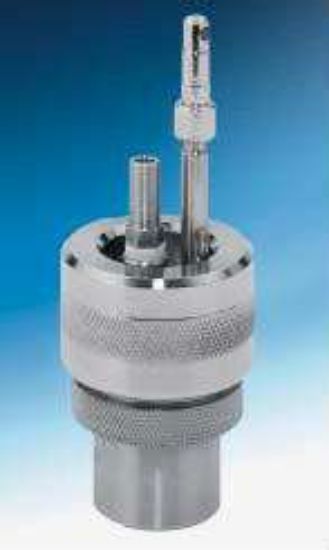

The 1109 Semimicro Oxygen Bomb is a self sealing design with an O-ring main seal. The head is equipped with an inlet/outlet valve for oxygen filling and release, and insulated and grounded electrodes for fhe firing circuit. Samples are held in a shallow nickel alloy dish which is supported on an adjustable Inconel loop attached to the oxygen inlet tube. Electrical connections for the firing circuit are made through a connector which slides into the central terminal stem.
<>Click the picture for a closer look
