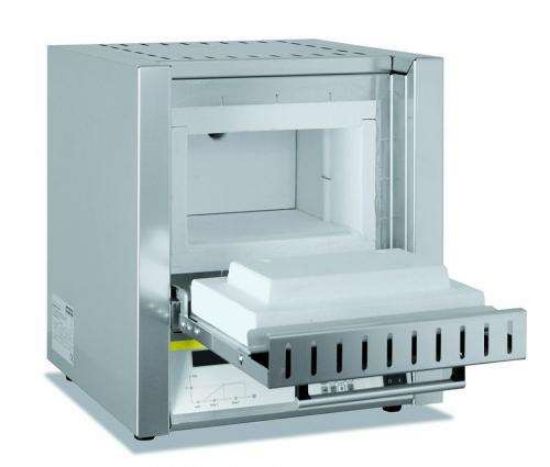

Nabertherm Muffle Furnace L 3/11/C450 with a maximum temperature of 1100 °C. Flap door can be used as a convenient work platform. Ideal for daily laboratory use.
Product Features
- Max. temperature: 1100 °C
- Flap door can be used as work platform
- Dual shell housing made of textured stainless steel sheets for low external temperatures and high stability
- Adjustable air inlet integrated in door
- Exhaust air outlet in rear wall of furnace
- Solid state relays provide low-noise operation
- Models with B410 or C450 controllers with programmable ramps and hold times available
- All insulation materials used are classified as non-carcinogenic according to TRGS 905, Class 1 or 2
- Standard connection: 230V 1/N/PE 50/60 Hz
- Ceramic heating plates with integrated heating wire, splash and exhaust protected, easy to replace heating from two sides (heating from three sides for muffle furnaces with interior volumes of 24 litres and 40 litres)
- Optional: Chimney, chimney with fan or catalytic converter
- Optional: Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and load
- Optional: Protective gas connection to purge with non-flammable protective or reaction gases (not available in combination with chimney, chimney with fan or catalytic converter)
- Optional: Manual or automatic gas supply system
- Optional: Process control and documentation via VCD software package for monitoring, documentation and control
Benefits
- Safe and stable operation with low external surface temperature
- High precision temperature control with programmable ramps and hold times
- Low maintenance due to solid-state relays and durable construction
- Flexible work platform with flap door for easy handling of samples
- Non-carcinogenic insulation materials for laboratory safety
- Easy replacement of heating elements for reduced downtime
- Optional features allow customization for specific laboratory requirements
Why Choose This Nabertherm Muffle Furnace L 3/11/C450 Max Temp 1100°C
The Nabertherm Muffle Furnace L 3/11/C450 offers reliable and precise temperature control in a durable, low-maintenance design. Its practical flap door, safe insulation, and optional features make it ideal for daily laboratory use.
