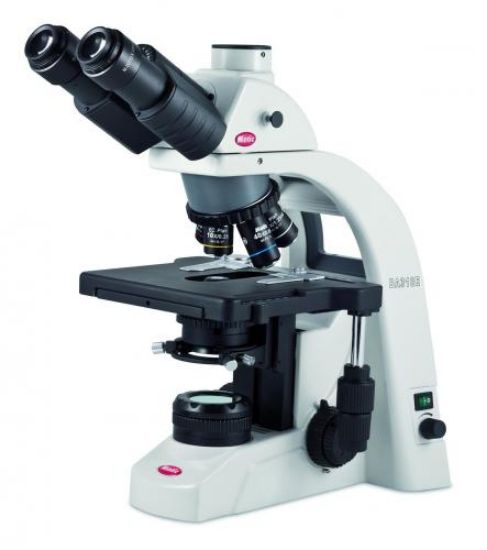

MOTIC Microscope BA310E is an advanced upright microscope designed for daily laboratory and life science applications in universities, clinics, and research facilities. It offers high-performance imaging and flexible observation options for a wide range of scientific tasks.
Product Features
- Infinity optics (CCIS)
- Observation tube Siedentopf type, trinocular with phototube 30°, F.N. 20
- Interpupillary distance 48–75 mm
- High-eyepoint N-WF 10x/20 mm eyepieces with dioptre adjustment and rubber eyecups
- Reversed quintuple revolving nosepiece
- Objectives: CCIS EC Plan 4x, 10x, 40x-S, 100x-S Oil
- Built-in low position coaxial, rackless mechanical stage (right-hand control)
- Focusable Abbe condenser N.A. 0.90/1.25 with iris diaphragm and slot
- Koehler illumination 3 W LED with intensity control
- Universal power supply 100–240 V (CE)
Scope of Supply
Includes immersion oil (5 ml), power cord, Allen hexagonal key, thumb screw, and vinyl dust cover. 6 V/30 W HAL illumination available as option.
Optional Features
- Phase-contrast 10x/20x/40x/100x for slider or turret condenser
- Darkfield 10x–40x for slider or turret condenser
- Polarization
Benefits
- High-performance imaging suitable for life science and laboratory applications
- Flexible observation with trinocular Siedentopf tube
- Infinity optics provide clear, sharp imaging
- Ergonomic design with adjustable eyepieces and mechanical stage for comfortable use
- Optional illumination and contrast methods for advanced research applications
Why Choose MOTIC Microscope BA310E Trinocular N-WF10X/20mm, Trinocular Tubus Type Siedentopf?
The BA310E microscope offers reliable, versatile, and precise imaging for laboratory, educational, and clinical applications, making it an ideal choice for professional life science work.
