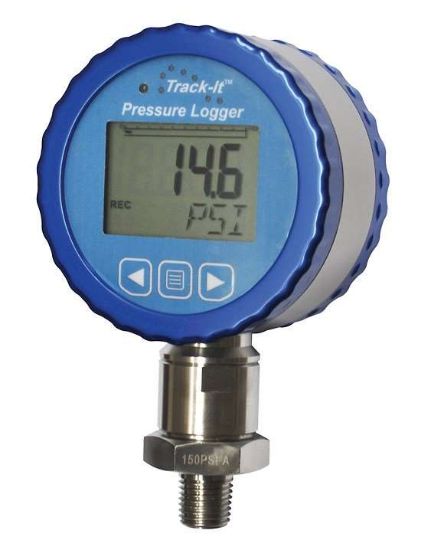

Monarch 5396-0372 Track-It Pressure/Temp Logger w/ Display & USB, 0-350 psig combines three instruments in one: gauge, data logger, and transmitter. It offers real-time monitoring, long-term data recording, and rugged performance for industrial, food, and construction applications.
Product Features
- Three instruments in one—gauge, data logger, and transmitter
- Multiline large-digit LCD scrolls through current readings, date/time, memory used, and Max/Min values with a single button
- Record up to 130,000 pressure/vacuum and temperature data points
- Download saved data or live stream to PC for real-time monitoring
- Rugged IP67-rated housing is watertight and submersible
- Three-year battery for long-term recording
- Available pressure units: psi, in. Hg, mm Hg, kPa, mPa, Pa, mbar, bar, in. H2O, atm, Torr
- Overpressure rating: 150% full-scale
- 1/4" NPT(M) process connection fits common ports
- Durable anodized aluminum and 316L stainless steel construction
- Configuration software (free download) allows programming units, alarm set points, start/stop times, and sampling rate
- Nonvolatile memory stores up to 130,000 data points
- Can stream data live to PC like a transmitter
Whats Included
- Track-It software
- USB cable
- Li-ion 1/2AA battery
Benefits
- Replaces traditional pressure gauges for more versatile monitoring
- Accurate and reliable data collection in harsh environments
- Easy integration with existing systems via USB and standard ports
- Convenient onboard display for immediate readings and memory tracking
Why Choose Monarch 5396-0372 Track-It Pressure/Temp Logger?
This logger provides precise, long-term pressure and temperature monitoring in a rugged, waterproof housing, offering both real-time and recorded data collection in industrial and laboratory environments.
