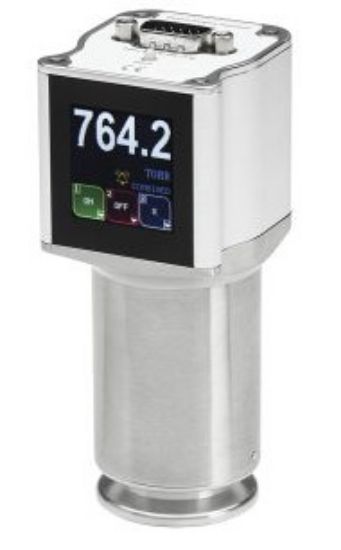

The MKS QuadMag Vacuum Transducer combines cold cathode inverted magnetron, MicroPirani, and Piezo sensor technologies to deliver absolute pressure measurement from atmosphere down to 1x10⁻⁸ Torr. Designed for loadlocks and vacuum chambers, it simplifies system design by replacing multiple pressure measurement devices with one compact transducer. Featuring an NW25 ISO-KF flange fitting, RS485 digital communication, and three mechanical relays for process control, it ensures reliable, real-time pressure monitoring and seamless integration into OEM and retrofit applications.
Product Features
- Measurement range from 1x10⁻⁸ to 1500 Torr for comprehensive vacuum monitoring
- Cold cathode inverted magnetron, MicroPirani, and Piezo sensors combined in one unit
- RS485 digital communication for setup and live pressure data
- Three mechanical relays for process control like pump or valve interlocks
- Absolute pressure measurement and atmospheric switching capabilities
- Analog pressure output of 0.5VDC/decade compatible with external equipment
- Selectable analog outputs and curves through the digital user interface
- Analog emulation to replace other vacuum gauges without software changes
- Integrated user-configurable touch-screen display with adjustable units, orientation, and gas type
- High-contrast display visible from over 5 meters away
- Compact NW25 ISO-KF flange fitting for easy installation
- Standard 15-pin HD Sub-D connector for straightforward connectivity
Benefits
- Replaces multiple gauges, simplifying loadlock and chamber designs
- Cost savings for OEMs through reduced component count
- Real-time, accurate pressure measurement across a wide range
- Flexible integration into new or existing systems with digital and analog outputs
- User-friendly display improves monitoring and configuration
- Analog emulation feature supports easy upgrades and replacements
Why Choose the MKS QuadMag Vacuum Transducer, Cold Cathode-MicroPirani-Piezo, Display, NW25 ISO-KF, RS485, 3 Relays?
Engineered for performance and efficiency, the MKS QuadMag Vacuum Transducer streamlines vacuum system design with multi-sensor measurement, relay control, and advanced communication. Its compact form, integrated display, and broad measuring range make it a versatile and reliable choice for both OEM and retrofit applications.
