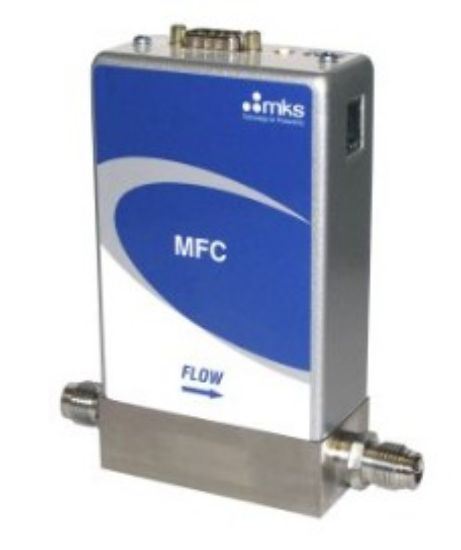

The MKS GM50A Metal Sealed Mass Flow Controller, H2S, 50 SCCM (GM50A022501RBM020) is a general purpose metal sealed mass flow controller configured for H2S with a 50 SCCM flow specification. It uses digital flow control electronics, a patented thermal sensor design, and an electropolished metal sealed construction for high purity process applications.
Key Features
- Brand: MKS
- Product Type: Metal sealed mass flow controller
- Model: GM50A
- Gas: H2S
- Flow Specification: 50 SCCM
- Series Flow Capability: 5 sccm to 50 slm Full Scale, N2 equivalent
- Fitting Compatibility: Compatible with Swagelok 4 VCR male fittings
- I/O: Analog 0 to 5 VDC, 15 Pin D connector
- Secondary I/O: Modbus available, excluding PROFINET and EtherCAT configurations
- Valve Configuration: Normally closed valve
- Response Time: Typical response times on the order of 500 milliseconds
- Accuracy: 1% of set point accuracy on the calibration gas
- Footprint: Standard 3-inch MFC footprint
- Surface Finish: Electropolished surface finish
Benefits
- Supports controlled H2S gas flow for process and laboratory systems requiring a configured 50 SCCM MFC.
- Helps simplify integration into existing gas line layouts using the standard 3-inch MFC footprint.
- Provides fast and repeatable response to set point for stable flow control performance.
- Metal sealed and electropolished construction supports use in high purity process applications.
- Analog 0 to 5 VDC I/O and a 15 Pin D connector support compatibility with matching control configurations.
Why Choose the MKS GM50A Metal Sealed Mass Flow Controller, H2S, 50 SCCM (GM50A022501RBM020)?
The MKS GM50A022501RBM020 combines metal sealed construction, digital flow control electronics, and a configured H2S 50 SCCM flow specification for demanding gas flow control applications. John Morris Group supplies specialised MKS process instrumentation for laboratories, research facilities, and industrial users across Australia and New Zealand.
