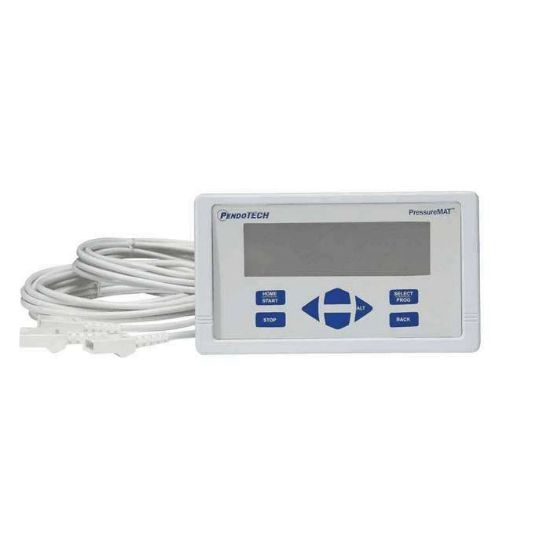

The Masterflex Pendotech PressureMAT Pressure Monitor, 4-bar relative, delivers accurate single-use process pressure monitoring for demanding bioprocess applications. Equipped with four input channels and four relay outputs, this 110/220 VAC system is ideal for use in tangential flow filtration, chromatography, bioreactor monitoring, and depth filtration. Designed for seamless integration with in-line single-use pressure sensors, the PressureMAT offers pressure display, data logging, alarm functionality, and transmission in one compact unit. It captures readings every second per channel, displays pressure on an easy-to-read LCD, and features simple one-button zero calibration. Output can be transmitted via 4–20 mA or RS-232 for PC interfacing through software such as Excel, WinWedge, or HyperTerminal.
Product Features
- 4-bar relative pressure monitoring with 4 input channels
- Includes 4 relay outputs for alarm control or automation
- Dual voltage support: 110/220 VAC
- Compatible with single-use in-line pressure sensors
- RS-232 output for PC-based data analysis and control
- Bright LCD display with user-friendly zero calibration
Benefits
- All-in-one monitoring, logging, and alarm solution
- Improves control and safety of pressure-critical bioprocesses
- Reliable performance even in GMP-regulated environments
- Flexible relay outputs for process control and alerts
Why Choose the Masterflex Pendotech PressureMAT Pressure Monitor, 4-Bar Relative, 4 Input / 4 Relay, 110/220 VAC?
The Masterflex Pendotech PressureMAT Pressure Monitor, 4-Bar Relative, 4 Input / 4 Relay, 110/220 VAC offers precision pressure monitoring and real-time control with a highly configurable setup ideal for modern bioprocessing applications.
