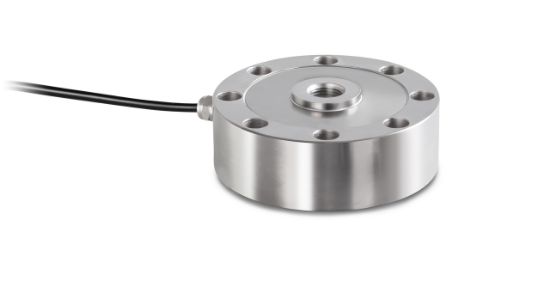

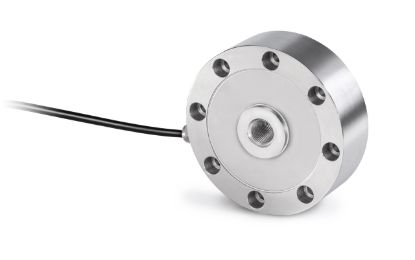

The Kern stainless steel load cells are designed for high-precision weight and force measurement. With IP68-rated hermetic encapsulation and compliance with OIML R60 C1 standards, these load cells ensure reliable performance in demanding industrial environments.
Product Features
- High precision (comprehensive error 0.05% F.S.)
- Accuracy in accordance with OIML R60 C1
- RoHS compliant
- Protection against dust and water splashes IP68 (EN 60529), hermetically encapsulated
- Material: Stainless steel
- Force transmission via pressure piece or threaded hole
- Nominal sensitivity: 2 mV/V

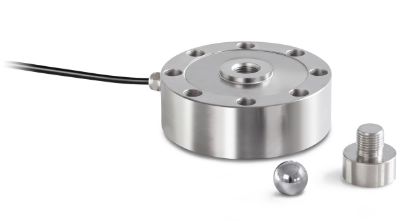

- Pressure piece included with delivery
- Thread sizes: up to 5000 kg M16×1.5, from 10000 kg M32×1.5
- Suitable for weight measurement, force measurement, and force test benches
Area of Application
For weight, tensile, and compressive force measurement in harsh or industrial environments.
Benefits
- Reliable operation even in wet or dusty conditions
- Hermetically sealed for enhanced durability
- Highly accurate with wide compatibility for force transmission
Why Choose the Kern Load Cells Made of Stainless Steel?
These robust and accurate load cells offer long-lasting performance under tough industrial conditions, making them a smart choice for weight and force testing.
