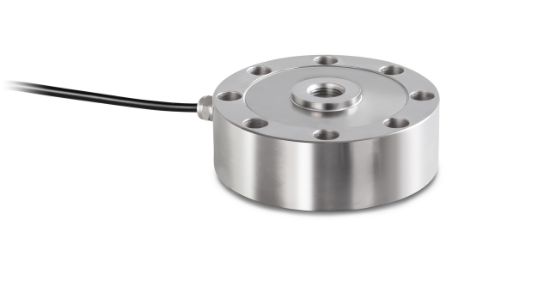

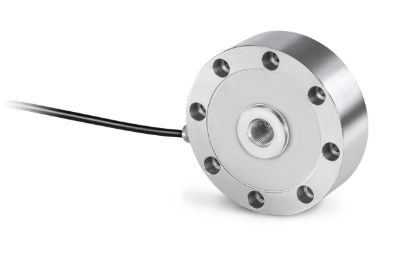

The Kern alloyed steel load cell is engineered for high-precision force and weight measurement, making it ideal for industrial applications. With IP68 protection and OIML R60 C1 certification, it performs reliably in harsh environments where durability and accuracy are critical.
Product Features
- Nominal Load: 20 t / 200 kN
- High precision (comprehensive error 0.05% F.S.)
- Accuracy in accordance with OIML R60 C1
- RoHS compliant
- Protection against dust and water splashes: IP68 (EN 60529), hermetically encapsulated
- Material: Stainless steel
- Nominal sensitivity: 2 mV/V
- Force transmission via pressure piece or threaded hole
- Thread sizes: up to 5000 kg M16×1.5, from 10000 kg M32×1.5

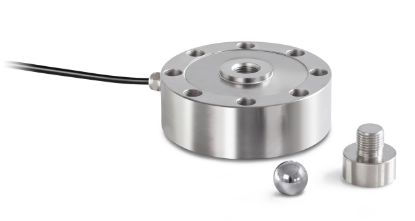

- Pressure piece included with delivery
- Suitable for weight measurement as well as force and force test benches
Area of Application
For weight, tensile and compressive force measurement in industrial and testing environments.
Benefits
- Excellent protection for use in harsh environments
- Hermetically sealed for longevity and stability
- High accuracy and repeatability for demanding measurements
Why Choose the Kern Alloyed Steel Load Cell 20 t / 200 kN?
This load cell combines precision engineering with rugged construction, delivering consistent results in weight and force measurement across industrial applications.
