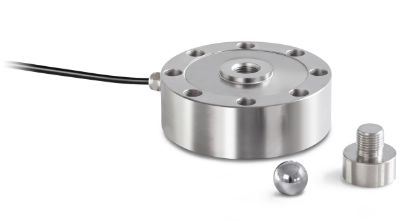

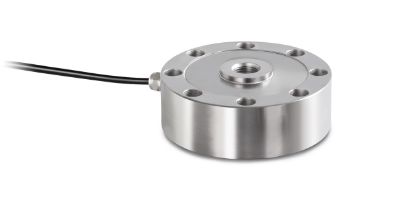

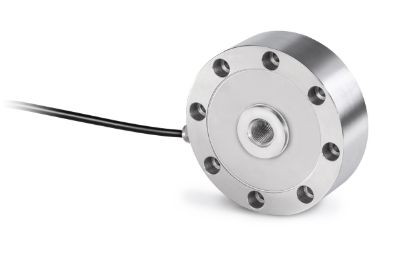

The Kern alloyed steel measuring cell is engineered for high-precision force and weight measurement in demanding environments. With OIML R60 C1 certification and IP68 protection, it guarantees durability, accuracy, and long-term performance in industrial applications.
Product Features
- Nominal Load: 100 t / 1000 kN
- High precision (comprehensive error 0.05% F.S.)
- Accuracy in accordance with OIML R60 C1
- RoHS compliant
- Protection against dust and water splashes: IP68 (EN 60529), hermetically encapsulated
- Material: Stainless steel
- Nominal sensitivity: 2 mV/V
- Force transmission via pressure piece or threaded hole
- Thread sizes: up to 5000 kg M16×1.5, from 10000 kg M32×1.5
- Pressure piece included with delivery
- Suitable for weight measurement as well as force and force test benches
Area of Application
For weight, tensile, and compressive force measurement in industrial and testing environments.
Benefits
- Rugged stainless steel construction for long-term reliability
- Hermetically sealed for optimal protection against harsh conditions
- Certified accuracy ensures dependable results
Why Choose the Kern Alloyed Steel Measuring Cell 100 t / 1000 kN?
This Kern measuring cell combines robust build quality with high precision, making it ideal for heavy-duty applications requiring accurate and reliable force or weight measurement.
