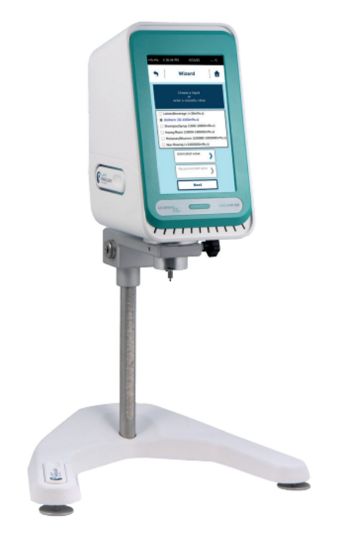

The Lamy Rheology RV Spring Viscometer with Spindles R2 to R7 offers precision and reproducibility for viscosity measurements from 200 to 40M mPa.s. For viscosities down to 100 mPa.s, use the RV1 spindle (not included). This spring-based viscometer combines advanced technology with digital controls for laboratory and industrial applications.
Product Features
- Spring technology for highly precise viscosity measurement
- Digital leveling for accurate spindle positioning
- Inbuilt software for programming measurement sequences
- Direct measurement with time-to-stop function
- User and locked mode operation
- Data recording and USB transfer capability
- Torque gauge displayed on the screen
- Printer connection for immediate results
- Compatible with RheoTex software
- Viscosity limits display for given spindle and speed combinations
- Shear or speed rate control with direct temperature unit integration
- Multistep method, LIMS function, QC limits, and Method Wizard
- Rack stand with adjustable feet
Technical Specifications
- 7'' Touch screen display
- Speed range: 0.1 – 250 rpm
- Torque range: 0.7187 mNm
- Temperature range: -50°C to 300°C with external probe
- Accuracy: ±1% of full scale
- Repeatability: ±0.2%
- Supply Voltage: 90–240 VAC, 50/60 Hz
- Analog Output: 4–20 mA
- PC connection via RS232, USB, and Ethernet
- Printer connection via USB Host Port, compatible with PCL5
- Display parameters: Viscosity, Speed, Shear Rate, Torque, Shear Stress, Time, Temperature, Electronic Leveling
What's Included
- 6 x RV spindles (R2 to R7)
- 1 x Leg guard suitable for RV model
- 1 x Rack stand
- 1 x User manual
- 1 x Calibration and checking certificate
- 1 x Carrying case
Optional Accessories
- External temperature probe
- Helipro for non-flowing samples
- Barcode reader
- Bayonet spindle rack
- Touch screen protector
- Viscosity standards oil
- Printer
- Small volume package
- Thermocell
- RheoTex software
- ULA kit for ultra-low viscosity samples
Benefits
- Highly precise and reproducible viscosity measurements
- Digital controls simplify operation and data handling
- Versatile for a wide range of viscosities and applications
- Easy data transfer and integration with laboratory software
- Optional accessories enhance functionality for specialized measurements
Why Choose Lamy Rheology RV Spring Viscometer with Spindles R2 to R7?
The Lamy Rheology RV Spring Viscometer with Spindles R2 to R7 combines accuracy, flexibility, and advanced technology, making it ideal for laboratories and industries requiring precise viscosity analysis and reliable data handling.
