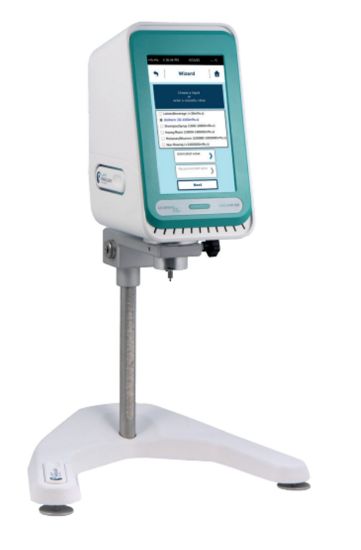

The Lamy Rheology LV Spring Viscometer with Spindles L1 to L4 delivers precision and reproducibility for viscosity measurements across a range of 15 to 6M mPa.s. For measuring down to 1 mPa.s, a special ULA kit is required (not included).
Product Features
- Spring Technology for highly precise measurements
- Digital leveling for easy setup
- Inbuilt software for programming measurement protocols
- Direct measure with time to stop
- User and locked mode for controlled operation
- Data recording and USB transfer
- Torque gauge displayed on screen
- Printer connection for hard copy output
- Compatible with RheoTex software
- Display of viscosity limits for spindle and speed combinations
- Shear or speed rate control
- Direct control of temperature unit
- Multistep measurement method
- LIMS function for laboratory integration
- QC limits function
- Method Wizard for simplified programming
- Rack stand with adjustable feet
Included Accessories
- 4 x LV spindles
- 1 x Leg guard suitable for LV model
- 1 x Rack stand
- 1 x User manual
- 1 x Calibration and checking certificate
- 1 x Carrying case
Technical Specifications
- 7'' Touch screen
- Speed range: 0.1 – 250 rpm
- Torque range: 0.06737 mNm
- Temperature range: -50°C to 300°C (with external temperature probe)
- Accuracy: ±1% of full scale
- Repeatability: ±0.2%
- Supply Voltage: 90–240 VAC, 50/60 Hz
- Analog Output: 4–20 mA
- PC connection: RS232, USB, Ethernet
- Printer connection: USB Host Port, compatible with PCL5
- Display parameters: Viscosity, Speed, Shear rate, Torque, Shear stress, Time, Temperature, Electronic leveling
Optional Accessories (Must be purchased separately)
- External temperature probe
- Helipro for non-flowing samples
- Barcode reader
- Bayonet spindle rack
- Touch screen protector
- Viscosity standards oil
- Printer
- Small volume package
- Thermocell
- RheoTex software
- ULA kit for ultra-low viscosity samples
Benefits
- High precision and reproducibility for a wide viscosity range
- Easy data recording and transfer via USB
- Flexible control of measurement parameters
- Durable and reliable design for laboratory use
Why Choose Lamy Rheology LV Spring Viscometer with Spindles L1 to L4?
This viscometer provides accurate and reproducible viscosity measurements with advanced features for data management, temperature control, and laboratory integration. Ideal for research, quality control, and industrial applications.
