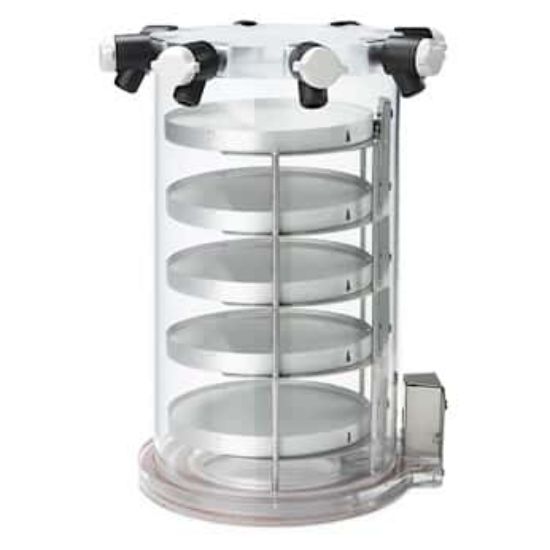

The Labconco FreeZone Heated Shelf Chamber, 5 Shelves, 8 Valves, 230 V EU Plug (780802130 / 03346-15) expands a compatible FreeZone Freeze Dryer for both shelf-based and flask-based lyophilisation. Its clear acrylic chamber combines five removable shelves with eight flask ports, allowing bulk samples, vials, serum bottles, microplates and externally connected freeze-drying flasks to be processed using the same chamber.
Key Features
- Five removable 10 in. diameter shelves, providing multiple levels for vials, serum bottles, microplates and bulk samples
- Eight flask valve ports, allowing external freeze-drying flasks to be connected directly to the chamber
- Accepts 1/2 in. and 3/4 in. flask adapters, supporting common Labconco freeze-drying flask connections
- Shelf temperature setting from -20 to +60°C, equivalent to -4 to +140°F, based on the internally consistent temperature conversion
- Five temperature probes included, corresponding to the five-shelf chamber configuration
- Removable shelf design, allowing shelves to be taken out for flexible sample loading and pre-freezing workflows
- 12 in. diameter clear acrylic cylinder, providing visibility of samples during operation
- 230 VAC, 50 Hz electrical configuration
- EU/Schuko plug, supplied for the European electrical configuration
- Compact 13.5 × 15.2 in. footprint, with a 24.6 in. overall chamber height
Benefits
- Expand a compatible FreeZone Freeze Dryer for both shelf-based and external-flask drying workflows.
- Process multiple sample formats using five removable shelves within one chamber.
- Connect up to eight freeze-drying flasks while retaining internal shelf capacity.
- Use one accessory chamber for both bulk and flask-based lyophilisation workflows.
- Install the exact 230 V, 50 Hz EU-plug configuration without substituting a regional power variant.
Why Choose the Labconco FreeZone Heated Shelf Chamber (780802130 / 03346-15)?
The Labconco 780802130 combines five removable shelves, eight flask ports and a clear acrylic chamber in a dedicated 230 V, 50 Hz EU-plug configuration. John Morris Group supplies the verified 03346-15 variant for laboratories requiring flexible shelf and flask freeze-drying capability with a compatible FreeZone system.
Included Components
- Acrylic cylinder and base
- Five removable shelves
- Temperature probes
- Eight flask ports
- EU/Schuko power plug
