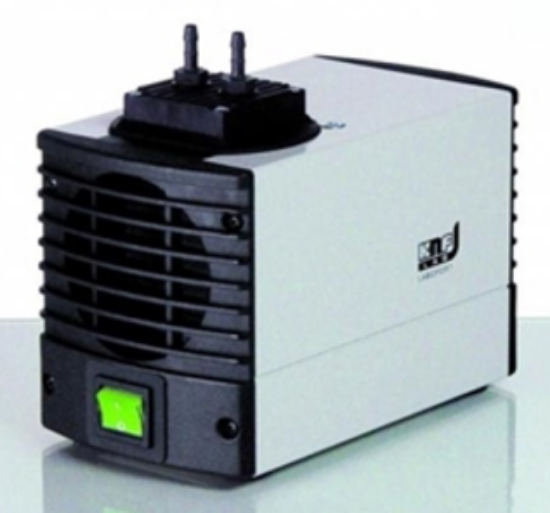

KNF Neuberger LABOPORT diaphragm vacuum pumps are compact, high-performance pumps ideal for filtration, solid-phase extraction (SPE), degassing, and fluid aspiration. The N 816.1.2 KT.18 model provides a flow rate of 30 L/min and comes with a motor rated IP20, 230V / 50Hz.
Product Features
- N 938.50 KT.18 ensures exceptionally fast evacuation by parallel and series connection of both pump heads
- N 86 KT.18 has a very small footprint for space-saving setup
- PTFE-coated diaphragm ideal for aggressive or corrosive gases and vapors
- Pump head made from PPS (Polyphenylsulfide), valves made from FFPM (Perfluoro rubber)
Specifications
- Connectors for tube:
- N 86 KT.18 / KN.18: ID 4 mm
- N 816.3 KT.18 / N 816.1.2 KT.18: ID 6 mm
- N 938.50 KT.18: ID 10 mm
- Permissible media and ambient temperature: 5 to 40 °C
- Flow rate: Up to 1.8 m³/h
- Ultimate vacuum: Up to 15 mbar abs.
- IP code: IP 20
Benefits
- Compact design with high performance and fast evacuation
- Resistant to aggressive and corrosive gases
- Versatile applications including filtration, SPE, degassing, and fluid aspiration
- Reliable and durable pump head and valve materials for long service life
Why Choose KNF Neuberger LABOPORT Diaphragm Vacuum Pump N 816.1.2 KT.18 30 L/min with Motor IP20 230V 50Hz?
These pumps provide a robust, efficient, and safe solution for laboratory vacuum applications, combining chemical resistance, compact design, and precise performance.
