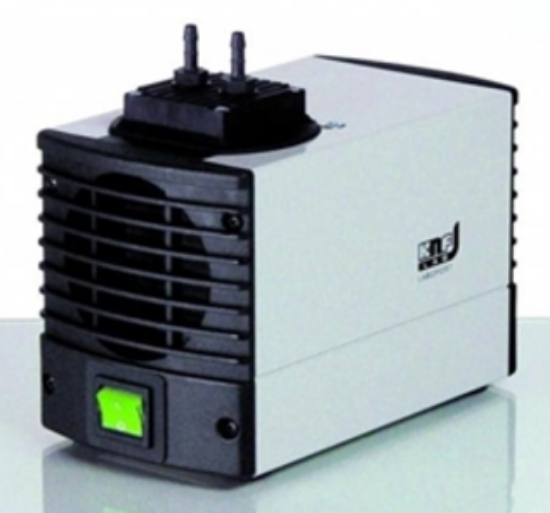

KNF Neuberger Laboport diaphragm pumps are compact and high-performance vacuum pumps designed for filtration, SPE, degassing, and fluid aspiration applications. The N 816.3 KT.18 model delivers up to 16 L/min with robust protection class IP 20 and operates at 230V / 50Hz.
Product Features
- Exceptional evacuation via parallel and series connection of pump heads (N 938.50 KT.18)
- Compact footprint for space-saving operation (N 86 KT.18)
- PTFE-coated diaphragm ideal for aggressive and corrosive gases and vapors
- Pump head made from PPS (Polyphenylsulfide), valves made from FFPM (Perfluoro rubber)
Specifications
- Flow rate: Up to 16 L/min
- Ultimate vacuum: Up to 15 mbar abs.
- Permissible media and ambient temperature: 5 to 40 °C
- IP 20 protection class
- Connectors for tube: N 86 KT.18 / KN.18: ID4 mm, N 816.3 KT.18 / N 816.1.2 KT.18: ID6 mm, N 938.50 KT.18: ID10 mm
Benefits
- High-performance pump suitable for laboratory and industrial applications
- Durable materials resist aggressive media and vapors
- Compact design saves bench space
- Reliable and consistent vacuum for precise operations
Why Choose KNF Neuberger Laboport Diaphragm Pump N 816.3 KT.18, 16 L/min, Protection Cl. IP 20, 230V / 50Hz?
These pumps provide reliable, versatile, and efficient vacuum solutions for filtration, SPE, degassing, and fluid aspiration tasks, making them essential equipment in laboratory environments.
