KGW Schieder Cold Traps with Dewar flasks are made from 3.3 DIN/ISO 3585 borosilicate glass for vacuum applications using liquid nitrogen (LN2). The flasks are vacuum insulated, silver-plated, and encased in a blue-coated protective metal sheet. A plastic ring collar provides stable support for the cold trap without requiring additional holders. The Dewar flask has theoretical coolant capacities of 1.0 L or 2.0 L, while the cold trap provides condensate capacities of 150 ml or 250 ml. This version also includes a convenient drain opening for easier condensate removal.
Product Features
- Constructed from high-quality 3.3 DIN/ISO 3585 borosilicate glass
- Vacuum insulated and silver-plated for efficient cooling
- Encased in a blue-coated protective metal sheet
- Plastic ring collar ensures secure and stable support
- Theoretical coolant capacity: 1.0 L or 2.0 L
- Theoretical condensate capacity: 150 ml or 250 ml
- Joint version S29: spherical joints
- Joint version GL18: glass screw thread with PTFE olive (10 mm)
- Joint version O29: spherical joints S29 with O-ring seal
- Standard assembly designed for LN2 as coolant
- Compatible with CO2 and acetone cooling when used with optional CO2 grid
- Dewar type 12C/18C supported
- Includes drain opening for easy condensate removal
What’s Included
- Cold trap
- Dewar flask
- Plastic ring
Benefits
- Ensures efficient condensation in vacuum applications
- Durable borosilicate glass provides long-term use
- Protective casing enhances safety during handling
- Stable support design eliminates the need for extra holders
- Drain opening allows easy removal of condensate
- Multiple joint versions available for flexible laboratory setups
Why Choose KGW Schieder Cold Trap KF 29-OK-A?
KGW Schieder Cold Trap KF 29-OK-A provides a reliable and complete solution for laboratory vacuum applications. Its borosilicate glass construction, protective casing, multiple joint options, and convenient drain opening ensure safety, durability, and efficiency in demanding lab environments.

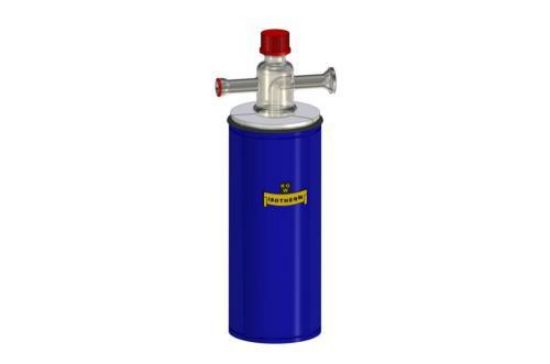

KGW Schieder Cold Trap KF 29-OK-A Complete With Dewar Flask 12 C And Plastic Ring And Drain Opening
