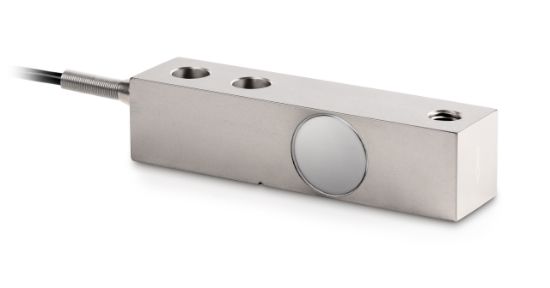

The Kern Load Cell is a high-precision shear beam measuring cell designed for accurate mass measurements in industrial and laboratory applications. Its robust nickel-plated steel construction and IP67 protection ensure reliable performance in demanding environments.
Product Features
- Weighing capacity: 500 kg
- Design: Shear beam measuring cell
- Directions of force: Compression
- Measuring applications: Mass
- Combined error: 0.023%
- OIML class: C3
- Resolution (verifiable): 3000 e
- Y-value: 10000
- Nominal characteristic value: 3 mV/V
- IP protection: IP67 (complete device)
- Material: Steel, nickel-plated
- Load cell connection: 4-wire
- Cable length: 4 m
- Mounting – force application: Threaded hole M12
- Mounting – force dissipation: 2 × through hole Ø 13.5 mm
Benefits
- Provides highly accurate and repeatable mass measurements
- Durable nickel-plated steel ensures long-term reliability
- IP67 rating protects against dust and water for industrial use
- Compatible with a wide range of Kern weighing systems
- Easy to install with threaded and through-hole mounting options
Why Choose the Kern Load Cell?
The Kern Load Cell delivers precision, durability, and reliability for professional weighing applications. Its shear beam design and robust construction make it ideal for industrial and laboratory scales requiring accurate and repeatable measurements.
