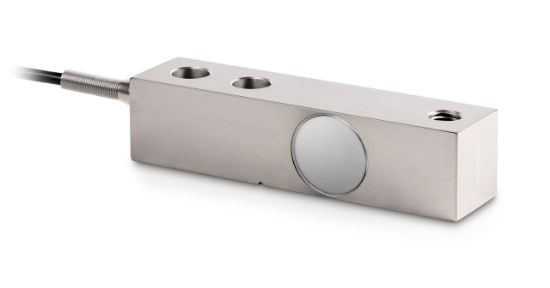

The Kern Load Cell is a high-capacity shear beam measuring cell designed for precise mass measurements in industrial and laboratory applications. Its robust nickel-plated steel construction and IP67 protection ensure reliable performance even in demanding environments.
Product Features
- Weighing capacity: 5000 kg
- Design: Shear beam measuring cell
- Directions of force: Compression
- Measuring applications: Mass
- Combined error: 0.023%
- OIML class: C3
- Resolution (verifiable): 3000 e
- Y-value: 10000
- Nominal characteristic value: 3 mV/V
- IP protection: IP67 (complete device)
- Material: Steel, nickel-plated
- Load cell connection: 4-wire
- Cable length: 6 m
- Mounting – force application: Threaded hole M18 × 1.5
- Mounting – force dissipation: 2 × through hole Ø 19.8 mm
Benefits
- Provides highly accurate and repeatable mass measurements
- Durable nickel-plated steel ensures long-term reliability
- IP67 rating protects against dust and water for industrial use
- Compatible with a wide range of Kern weighing systems
- Easy installation with threaded and through-hole mounting options
Why Choose the Kern Load Cell?
The Kern Load Cell delivers precision, durability, and high-capacity performance for professional weighing applications. Its shear beam design and robust construction make it ideal for industrial and laboratory scales requiring accurate and repeatable measurements.
