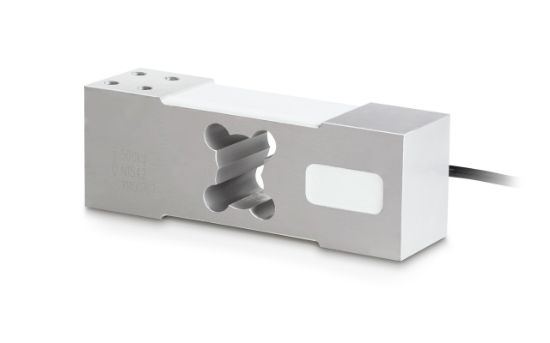

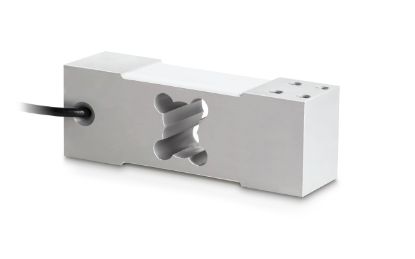

The Kern Load Cell is a precision single point load cell designed for accurate mass measurement in laboratory and industrial applications. Engineered with aluminum construction and IP65 protection, it delivers reliable performance under demanding conditions.
Product Features
- Weighing capacity [Max]: 600 kg
- Design: Single point load cell
- Directions of force: Compression
- Measuring applications: Mass
- Load cell - Combined error: 0.02%
- Load cell OIML class: C3
- Load cell - Resolution (verifiable): 3000 e
- Load cell - Y-value: 10000
- Load cell - Characteristic value - nominal: 2 mV/V
- IP protection - complete device: IP65
- Material: Aluminum
- Load cell connection: 6-wire
- Cable length: 3 m
- Mounting - force application: 4 × threaded hole M8
- Mounting - force dissipation: 4 × threaded hole M8
Benefits
- High-accuracy mass measurement with minimal error (0.02%)
- Durable aluminum construction with IP65 protection against dust and water
- Single point design allows easy integration into platforms and scales
- Reliable 6-wire connection ensures precise signal transmission
- OIML Class C3 certified for traceable calibration and compliance
Why Choose the Kern Load Cell?
The Kern Load Cell combines precision, durability, and compliance with OIML Class C3 standards. Ideal for laboratory, industrial, and commercial weighing applications, it ensures reliable measurements and long-term performance.
