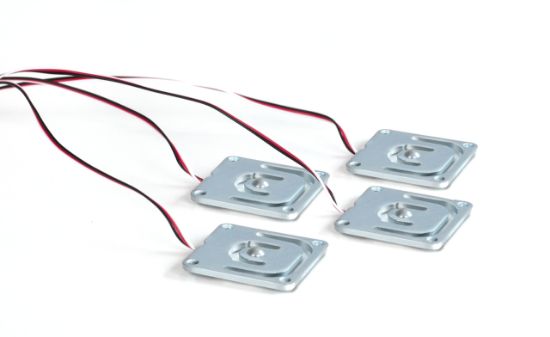

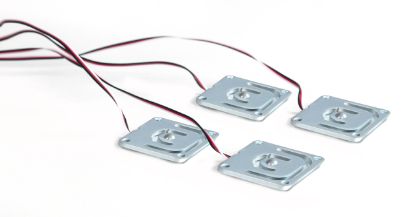

The Kern Load Cell is a precision miniature bending beam designed for compression force measurement up to 40 kg. Constructed from galvanized steel, this load cell provides high durability, reliability, and accuracy in mass measurement applications, making it ideal for industrial and laboratory weighing systems.
Product Features
- Weighing capacity [Max]: 40 kg
- Design: Miniature bending beam
- Directions of force: Compression
- Measuring applications: Mass
- Load cell combined error: 0.05%
- Load cell OIML class: C1
- Load cell characteristic value (nominal): 1 mV/V
- IP protection (complete device): IP65
- Material: Steel, galvanized
- Load cell connection: 4-wire
- Cable length: 0.45 m
- Mounting – force application: Support point
- Mounting – force dissipation: 4 × through hole Ø 3.1 mm
- Brand: Kern
Benefits
- High measurement precision with 0.05% combined error
- Durable galvanized steel construction for long service life
- Compact miniature design suitable for limited-space installations
- IP65 protection ensures reliable performance in harsh conditions
Why Choose the Kern Load Cell?
The Kern Load Cell delivers dependable accuracy and performance in demanding weighing applications, offering robust design, environmental protection, and consistent measurement quality.
