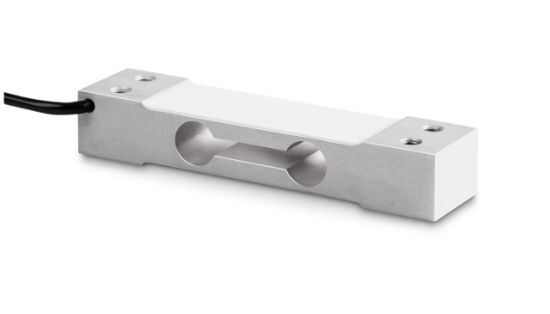

The Kern Load Cell is a precision single point load cell designed for accurate weight measurement up to 20 kg. Made from durable aluminum with IP65 protection, it ensures reliable performance in demanding weighing applications.
Product Features
- Weighing capacity [Max]: 20 kg
- Design: Single point load cell
- Directions of force: Compression
- Measuring applications: Mass
- Load cell combined error: 0.03%
- Load cell OIML class: C2
- Load cell characteristic value (nominal): 2 mV/V
- IP protection (complete device): IP65
- Material: Aluminum
- Load cell connection: 4-wire
- Cable length: 0.45 m
- Mounting – force application: 2 × threaded hole M6
- Mounting – force dissipation: 2 × threaded hole M6
Benefits
- High measurement accuracy with minimal combined error (0.03%)
- Durable aluminum construction with IP65 protection
- Compact single point design for versatile installation
- Ideal for precision mass and weight measurement tasks
Why Choose the Kern Load Cell?
The Kern Load Cell offers outstanding reliability, stability, and precision for industrial and laboratory weighing systems requiring 20 kg capacity.
