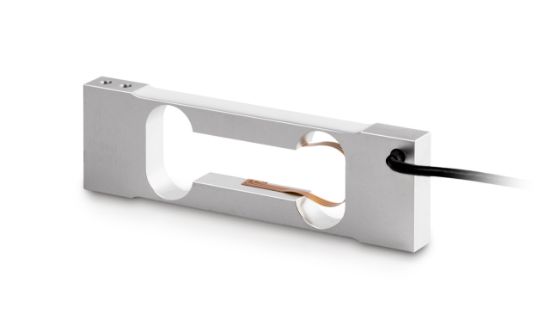

The Kern Load Cell is a high-precision single point load cell designed for weighing applications up to 1.5 kg. Constructed from durable aluminum and protected by an IP65-rated housing, it ensures accurate, reliable measurements in demanding environments.
Product Features
- Weighing capacity [Max]: 1.5 kg
- Design: Single point load cell
- Directions of force: Compression
- Measuring applications: Mass
- Load cell combined error: 0.017%
- Load cell OIML class: C3
- Load cell resolution (verifiable): 3000 e
- Load cell characteristic value (nominal): 0.9 mV/V
- IP protection (complete device): IP65
- Material: Aluminum
- Load cell connection: 4-wire
- Cable length: 0.45 m
- Mounting – force application: 2 × threaded hole M3
- Mounting – force dissipation: 2 × threaded hole M3
- Brand: Kern
Benefits
- Exceptional precision with a combined error of only 0.017%
- IP65 protection ensures durability in industrial environments
- Lightweight aluminum design for easy integration and long life
- Ideal for small platform scales and precision weighing systems
Why Choose the Kern Load Cell?
The Kern Load Cell delivers superior measurement accuracy and stability for compact weighing systems, making it perfect for laboratory, retail, and industrial precision applications.
