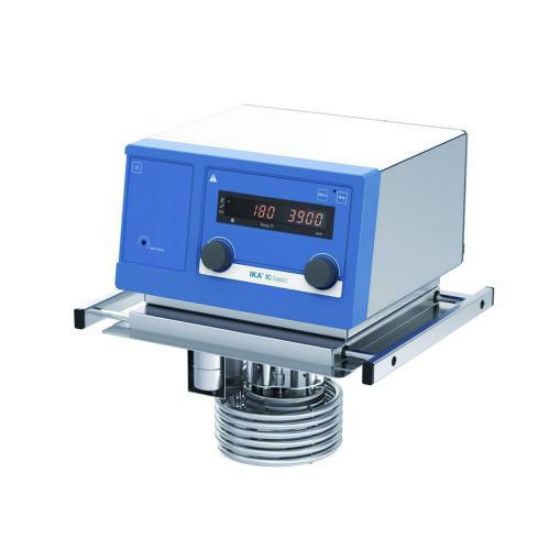

IKA-Werke Immersion Thermostat IC Basic is a versatile device for tempering liquids in open or covered vessels up to 250 °C. With an integrated extendable bath bridge, adjustable pressure and suction pump, and optional cooling coil, it ensures fast heat-up times, stable temperature conditions, and safe operation even with flammable liquids. Complete packages including bath vessels, covers, bridges, pump connection sets, and cooling coils are also available.
Product Features
- Immersion thermostat for liquids in open or covered vessels up to 250 °C
- Integrated, extendable bath bridge for hanging in various bath tanks
- Adjustable pressure and suction pump for internal or external applications
- Optional cooling coil for temperatures below or near ambient temperature
- Visual and acoustic warning functions for excess temperature, sub-level, and over-level
- LED display for parameter adjustment
- Menu navigation via push and turn buttons
- Adjustable safety circuit
- Integrated M16x1 connectors for external applications
- Connection for external Pt100 temperature probe
- USB/RS 232 interface for data logging and control
Specifications
- Heat output / Power input: 2500 W / 2650 W
- Working temperature: Room temp. +10 °C to 250 °C
- Operating temperature min. (with external cooling): -20 °C
- Temperature stability: ±0.02 °C
- Set temperature resolution: 0.1 °C
- Dimensions (W x H x D): 285 x 313 x 291 mm
- Bath depth min.: 150 mm
- Pump flow rate: 31 l/min
- Class/Identification acc. to DIN 12876: III/FL
- Protection class: IP 21
- Power supply: 100-115 / 230 V, 50-60 Hz
Benefits
- Ensures fast, stable, and precise temperature control of liquids
- Flexible bath installation for different tank sizes
- Safe operation with flammable liquids due to adjustable safety circuit and warnings
- Optional cooling coil allows use below ambient temperatures
- Complete packages available for immediate laboratory setup
Why Choose IKA-Werke Immersion Thermostat IC Basic?
The IC Basic provides a reliable, precise, and versatile solution for temperature control in laboratory environments, supporting safe operation, rapid heat-up, and efficient workflow.
