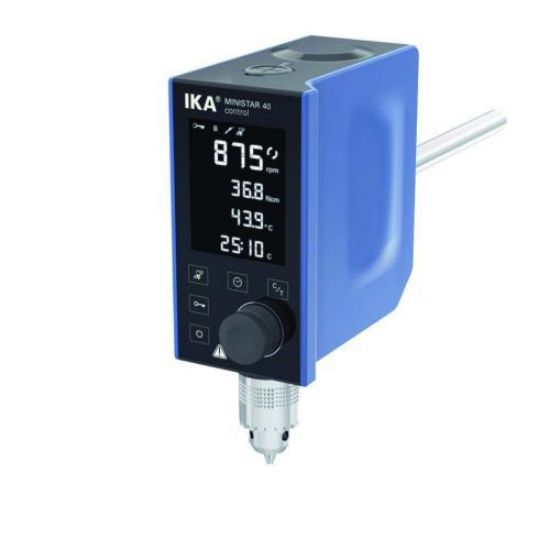

The IKA Werke MINISTAR 40 Control is a high-performance electronic overhead stirrer designed for demanding laboratory applications requiring power, precision, and control. Compact in design yet powerful in output, this stirrer delivers a maximum torque of 40 Ncm and can handle up to 25 liters of H₂O. With IP 54 protection, a chemical-resistant housing, and advanced digital controls, the MINISTAR 40 Control ensures safe, reliable operation even under challenging conditions.
Product Features
- Compact, robust overhead stirrer for laboratories and industrial use
- Hardened glass LCD display for durability and chemical resistance
- IP 54 protection against dust and water splashes
- Vibration sensors automatically stop the process when irregular motion is detected
- Integrated PT1000 temperature sensor for direct temperature measurement in the medium
- Temperature reading displayed on screen for easy monitoring
- USB and Bluetooth interfaces for documentation, data transfer, and firmware updates
- Easy connection to labworldsoft for PC-based control and automation
- Continuously adjustable speed with microprocessor-controlled speed governor for constant performance
- Integrated timer and key lock function for user safety
- 10-year manufacturer warranty ensures long-term reliability
Scope of Supply
- IKA MINISTAR 40 Control overhead stirrer
- Temperature sensor PT1000
- Mounting hardware and chuck key
- USB cable
- User manual
Specifications
- Maximum stirring quantity (H₂O): 25 L
- Maximum viscosity: 30,000 mPa·s
- Motor rating input/output: 60 W / 46 W
- Speed range: 0/30 – 1,000 rpm
- Maximum torque: 40 Ncm
- Temperature range: –10 to +350 °C
- Temperature accuracy: ±0.5 K
- Chuck range: 0.5 – 8 mm
- Dimensions (W × D × H): 70 × 154 × 193 mm
- Weight: 1.72 kg
- Protection class: IP 54 (DIN EN 60529)
- Power supply: 100 – 240 V, 50/60 Hz
Benefits
- Powerful torque for high-viscosity materials and large sample volumes
- Compact, space-efficient design for laboratory use
- Integrated safety functions protect user and equipment
- Direct temperature measurement with real-time display
- Smart connectivity with USB and Bluetooth for efficient data management
Why Choose the IKA MINISTAR 40 Control?
The IKA Werke MINISTAR 40 Control combines strength, precision, and advanced digital control in a compact footprint. With its robust motor, IP 54 protection, and connectivity features, it’s the perfect choice for laboratories requiring dependable stirring performance across a variety of viscosities and volumes.
