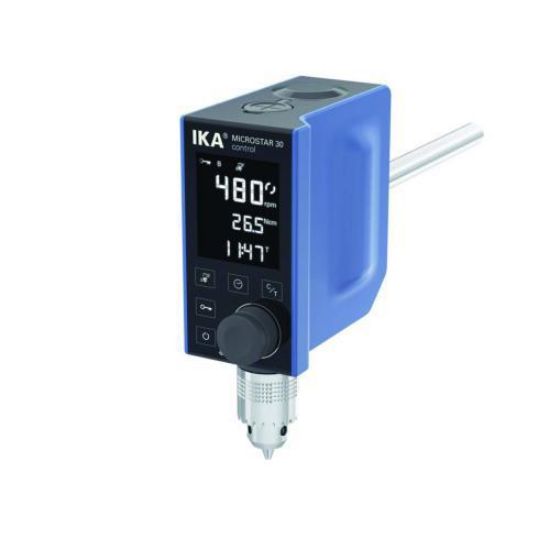

The IKA Werke MICROSTAR 30 Control is a powerful electronic overhead stirrer designed for precision, reliability, and ease of use in demanding laboratory applications. Compact yet capable, it delivers a maximum torque of 30 Ncm and can handle up to 20 liters of H₂O, making it ideal for medium to high-viscosity mixing tasks. Engineered with advanced safety and connectivity features, it combines high performance with user-friendly operation.
Product Features
- Compact and robust overhead stirrer for laboratory and industrial use
- Hardened glass LCD display for clear visibility and chemical resistance
- IP 54-rated housing protects against dust and splashes
- Vibration sensors detect irregular motion and automatically stop operation
- Integrated PT1000 temperature sensor for direct temperature measurement in the medium
- USB and Bluetooth interfaces for documentation and firmware updates
- Compatible with labworldsoft for PC-based control and data logging
- Microprocessor-controlled speed governor for constant speed under load
- Continuously adjustable speed with integrated timer and key lock function
- Chemical-resistant housing for long-term durability
- 10-year manufacturer warranty for long-term reliability
Scope of Supply
- IKA MICROSTAR 30 Control overhead stirrer
- Temperature sensor PT1000
- Chuck key and mounting hardware
- USB cable
- User manual
Specifications
- Maximum stirring quantity (H₂O): 20 L
- Maximum viscosity: 20,000 mPa·s
- Motor rating input/output: 32 W / 22 W
- Speed range: 0/30 – 500 rpm
- Maximum torque: 30 Ncm
- Temperature range: -10 to +350 °C
- Temperature accuracy: ±0.5 K
- Chuck range: 0.5 – 8 mm
- Dimensions (W × D × H): 60 × 136 × 173 mm
- Weight: 1.26 kg
- Protection class: IP 54 (DIN EN 60529)
- Power supply: 100 – 240 V, 50/60 Hz
Benefits
- High torque and stability for demanding mixing tasks
- Compact, space-saving design ideal for modern laboratories
- Integrated safety features for vibration and overload protection
- Connectivity via USB and Bluetooth for smart data management
- Temperature control and real-time display ensure precise results
Why Choose the IKA MICROSTAR 30 Control?
The IKA MICROSTAR 30 Control combines precision, power, and intelligent control in a compact footprint. With IP 54 protection, PT1000 temperature monitoring, and digital connectivity, it is built for professional laboratory environments where accuracy, safety, and repeatability are essential.
