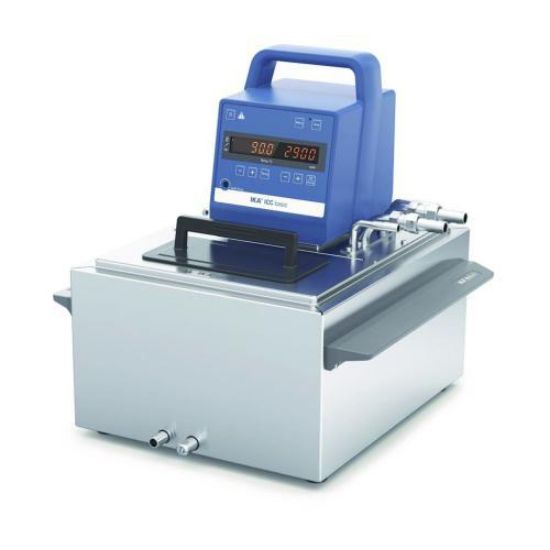

IKA-Werke Compact Immersion Circulator ICC basic pro 9 c Package Thermostat and Chiller with 9 l pro stainless steel bath and cover provides complete temperature control for laboratory applications, including immersion circulator, stainless steel bath, and all required accessories.
Product Features
- Complete, ready-to-connect temperature control systems with immersion circulator, stainless steel bath, and all required accessories
- For temperature control in stainless steel bath tanks up to 150 °C, suitable for internal and external applications
- Visual and acoustic warning functions for excess temperature, sub-level, and over-level
- LED display for temperature and pump adjustment
- Menu navigation via push and turn buttons
- Adjustable safety circuit and calibration option
- USB/RS 232 interface for connectivity
- Packages with cooling coil available for temperature control below or near ambient temperature
- ICC basic pro 9: ICC basic compact immersion thermostat, IB 9 pro stainless steel bath (9 l, size S), BS.ICC bath bridge
- ICC basic pro 9 c: ICC basic compact immersion thermostat, IB 9 pro stainless steel bath (9 l, size S), BS.ICC bath bridge and CS.ICC cover, PCS.ICC pump connection set, CC2 cooling coil
- ICC basic pro 12: ICC basic compact immersion thermostat, IB 12 pro stainless steel bath (12 l, size M), BL.ICC bath bridge
- ICC basic pro 12 c: ICC basic compact immersion thermostat, IB 12 pro stainless steel bath (12 l, size M), BL.ICC bath bridge and CM.ICC cover, PCS.ICC pump connection set, CC2 cooling coil
- ICC basic pro 20: ICC basic compact immersion thermostat, IB 20 pro stainless steel bath (20 l, size L), BL.ICC bath bridge
- ICC basic pro 20 c: ICC basic compact immersion thermostat, IB 20 pro stainless steel bath (20 l, size L), BL.ICC bath bridge and CL.ICC cover, PCS.ICC pump connection set, CC2 cooling coil
Specifications
- Heat output / Power input: 2000 W / 2100 W
- Working temperature: Room temp. +10 °C up to 150 °C
- Operation temperature minimum (with external cooling): -20 °C
- Temperature stability: ±0.02 °C
- Set temperature resolution: 0.1 °C
- Bath depth minimum: 150 mm
- Pump flow rate: 18 l/min
- Immersion depth: 85–125 mm
- Class / Identification acc. to DIN 12876: Protection class III / FL, IP 21
- Power supply: 115–230 V / 50–60 Hz
Benefits
- Ensures precise and stable temperature control for laboratory applications
- Ready-to-use package simplifies setup and operation
- Safety features protect samples and equipment from temperature deviations
- Cooling coil option allows control below ambient temperature
- Supports multiple bath sizes and configurations for flexibility
Why Choose IKA-Werke ICC basic pro 9 c?
This immersion circulator package delivers high accuracy, reliability, and complete functionality for laboratory temperature control, supporting consistent experimental results and efficient operation.
