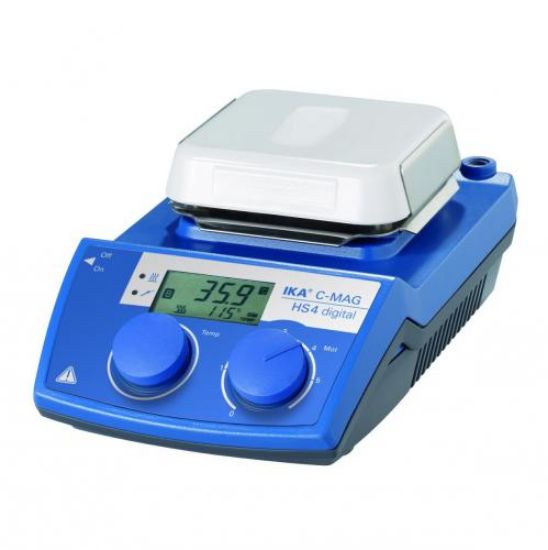

IKA Magnetic Stirrer C-MAG HS 4 Digital IKAMAG with heating features a glass-ceramic hotplate providing excellent chemical resistance. The powerful motor enables stirring volumes up to 5 l (H₂O), while simultaneous digital display of target and actual temperatures via LCD ensures precise control. A PT 1000 temperature sensor is included for high-accuracy medium temperature measurement (±0.5 K). The hotplate displays the medium temperature with 0.1 K resolution, and three operating modes (standard, safe, adjustment protection) allow flexible use. Safety features include a fixed 550 °C circuit and Hot Top indicator to prevent burns, plus a digital error code display and elevated control panel to protect against liquid spills.
Product Features
- Magnetic stirrer with heating and glass-ceramic hotplate
- Powerful motor for stirring up to 5 l (H₂O)
- Simultaneous digital display of target and actual temperatures via LCD
- PT 1000 temperature sensor included for precise medium temperature control
- Temperature display with 0.1 K resolution
- Three operating modes: standard, safe, adjustment protection
- Fixed safety circuit: 550 °C
- Hot Top indicator to prevent burns
- Digital error code display
- Elevated control panel protects against leaking liquids
Specifications
- Magnetic drive: HS4
- Max. stirring quantity (H₂O): 5 l
- Motor rating input/output: 15 / 1.5 W
- Speed range: 100–1500 rpm
- Speed display: Scale
- Heat output: 250 W
- Heating rate (1 l H₂O): 2.5 K/min
- Temperature range: 50–500 °C ±1 K
- Temperature display: LCD
- Connection for external temperature sensor: PT 1000
- Control accuracy with sensor: ±0.5 K (DIN 12878)
- Set-up plate material: ceramic, dimensions 100 x 100 mm
- Protection class acc. to DIN EN 60529: IP 21
- Power supply: 230 V, 50/60 Hz
Benefits
- High chemical resistance with durable glass-ceramic hotplate
- Precise temperature control with included PT 1000 sensor
- Safe operation with Hot Top indicator and fixed safety circuit
- Digital display for easy monitoring of set and actual values
- Flexible operation with multiple modes and elevated control panel
Why Choose IKA C-MAG HS 4 Digital IKAMAG with Heating, Glass-Ceramic Hotplate?
This magnetic stirrer combines chemical-resistant heating, precise temperature control, and safe, versatile operation, making it ideal for laboratory applications requiring reliable stirring and heating up to 5 litres.
