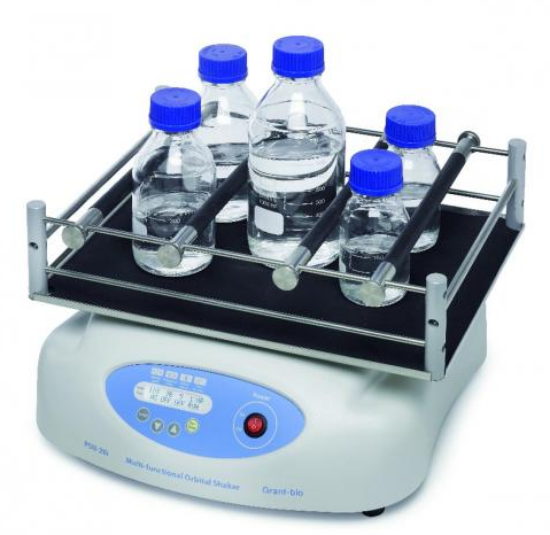

The Grant Instruments Flat-Bed Orbital Shaker PSU-20i is a powerful, microprocessor-controlled, multi-functional orbital shaker designed to optimize sample mixing in flasks, beakers, Petri dishes, and other laboratory vessels. It combines orbital motion, reciprocation, and vibration in one versatile device, allowing precise control over mixing conditions.
Product Features
- Orbital motion, orbital reciprocation, and vibration functions all in one product
- Reciprocal rotation: 0 to 360° turning angle in 30° steps
- Vibration: 0 to 5° turning angle in 1° steps
- Loading capacity: 8 kg
- Fully programmable sequence using one or all functions
- 6 interchangeable platforms for vessels up to 1000 ml
- Multi-level platform accommodates microplates, Petri dishes, and culture bags
Specifications
- Type of movement: orbital / reciprocal / vortex
- Orbit: 20 mm / 0 to 360° / 0 to 5°
- Speed range: 20 to 250 rpm
- Maximum load: 8 kg
- Timer: 1 min to 96 h
- Permissible ambient temperature: 4 to 40°C
- Dimensions (W x D x H): 410 x 410 x 130 mm
- Weight: 11.7 kg
- Power supply: 240 V, 50/60 Hz
Scope of Supply
- Orbital Shaker PSU-20i
- External power adapter
- Manual and certificate
Optional Platform Attachments Please Order Separately
Benefits
- Versatile mixing with multiple motion types in a single device
- Precise control of speed and angle for reproducible results
- Supports a variety of laboratory vessels including microplates and culture bags
- Durable construction with long operational lifetime
Why Choose Grant Instruments Flat-Bed Orbital Shaker PSU-20i, Exclusive Platform incl. EU/UK Plug?
This multi-functional shaker provides reliable, programmable, and efficient mixing for laboratories, combining flexibility, precision, and ease of use in a single robust device.
