The GUNT HM 450.02 - Francis Turbine is a reaction turbine that converts the pressure energy of water into kinetic energy in both the distributor and rotor. Francis turbines are ideal for medium-head, high-flow applications, and are commonly used in run-of-the-river and storage power plants. The turbine power is adjusted via the guide vanes to match the desired operating conditions.

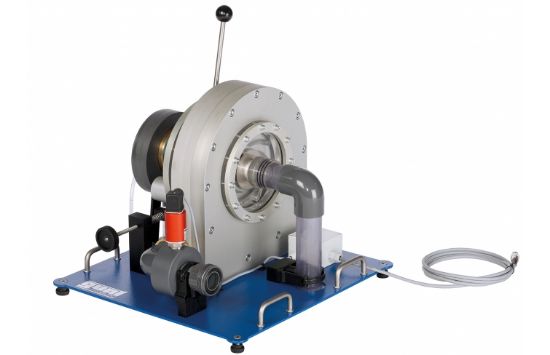

The HM 450.02 Francis Turbine is an accessory for the HM 450C trainer. The experimental unit includes a rotor, a distributor with adjustable guide vanes, an adjustable band brake for loading the turbine, and a spiral housing with a transparent front panel. The transparent cover allows observation of the water flow, rotor, and guide vanes during operation. The angle of attack and flow cross-section are adapted to the turbine speed and power by adjusting the guide vanes.
Product Features
- Reaction turbine suitable for medium-head, high-flow applications
- Adjustable guide vanes for flow and power control
- Transparent spiral housing for direct observation of turbine operation
- Force and speed sensors on the band brake to measure mechanical power
- Pressure sensor at the turbine inlet
- Compatible with HM 450C trainer for water supply and flow measurement
Benefits
- Real-time observation of turbine hydraulics and mechanics
- Accurate measurement of speed, torque, and mechanical power
- Enhances understanding of reaction turbine behavior under varying flow conditions
- Ideal for teaching and experimental research in hydraulic energy conversion
Why Choose GUNT HM 450.02 - Francis Turbine?
The GUNT HM 450.02 Francis Turbine provides a hands-on learning experience for studying reaction turbine operation, power output, and flow regulation. Its transparent housing and integrated sensors enable detailed observation and precise measurement, making it perfect for educational and research applications.
