Fluke Solar Tools Pro Kit with Multifunction PV Analyzer, Solar Irradiance Meter, TruTest„¢ Software, and MC4 Leads_1924046
Representative image only

Fluke Solar Tools Pro Kit with Multifunction PV Analyzer, Solar Irradiance Meter, TruTest„¢ Software, and MC4 Leads

All-in-one test solution to verify solar system performance and safety while expediting client reporting
  • Meets IEC 62446-1 standards for Category 1 and Category 2 tests
  • Open-circuit voltage (VOC) measurement at the PV module/string up to 1000 V DC
  • Short-circuit (ISC) current measurement at the PV module/string up to 20 A DC
  • On-location I-V curve results compares manufacturer I-V curve data to measured data on the analyzer screen
  • Compatible with Fluke TruTest„¢ data management software
  • 3 year warranty
Test that PV systems are performing to their optimal power output as well as operating safely with the Fluke SMFT-1000 multifunction testers with I-V curve tracing. Designed for PV professionals that provide installation, commissioning and maintenance services to systems that operate at 1000 V DC or under, the SMFT-1000 kits provide a complete PV testing solution that conforms to IEC 62446-1 standards. Through Fluke€™s TruTest„¢ Software, measurement data from solar site installation and commissioning testing can be easily imported, organized, and analyzed for effortless reporting without having to bring a laptop on-site. To perform precise I-V curve measurements, real time irradiance and temperature data is needed. The included IRR2-BT irradiance meter wirelessly connects to the SMFT-1000 to communicate data in real time, providing the most accurate I-V curve measurements possible. If the wireless connection is interrupted for any reason, the IRR2-BT will continue recording data for up to 17 hours that can later be matched to tests taken with the SMFT-1000.

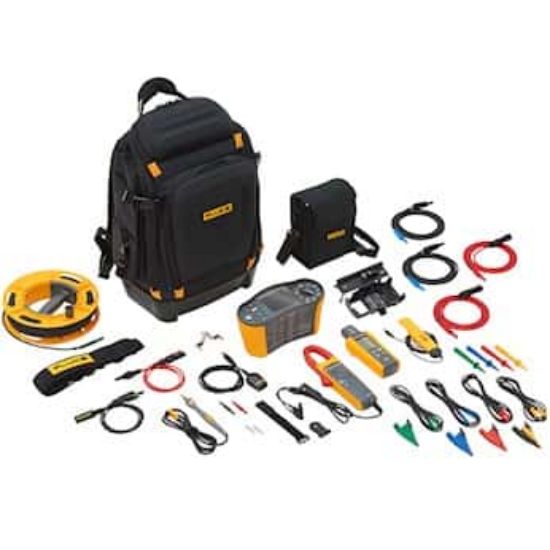

Includes: SMFT-1000-BP Professional Tool Backpack, SMFT-1000 Multifunction PV Analyzer, IRR2-BT Wireless Solar Irradiance Meter Pro, i100 AC/DC Current Clamp 100 A, TP1000 Test Probe with Remote Test Button, TL1000 Test Lead Set, TL1000-MC4 Test Lead Set, TL1000/30M Test Lead on Reel, Coupler Set, PVLEAD3 MC4 Solar Clamp Test Lead Set, and TruTest„¢ Advanced Data Management and Reporting Software.
