The Fluke FEV100/TY1 & TSL EVSE Test Kit with Type 1 and Tesla Connectors (FLK-FEV100/TY1 & TSL / 5348051 / 39749-74) is designed for safety and functional testing of AC electric vehicle charging stations without bringing an electric vehicle onsite. The kit combines the FEV100 EVSE simulator with both a SAE J1772 Type 1 connector and a Tesla-type AC charging-station connector for broader service coverage.
Key Features
- Simulates an electric vehicle at the charging station, allowing installation, maintenance and troubleshooting checks without an EV onsite
- Includes both Type 1 and Tesla-type connector assemblies, supporting a wider range of North American AC charging stations
- Supports SAE J1772 Type 1 Level 1 and Level 2 AC EVSE, including compatible Tesla AC wall connectors
- Control-pilot state simulation, covering CP states A, B, C and D for charging-state verification
- CP Error E simulation, allowing technicians to verify charging-station response to a defined control-pilot fault condition
- Protective-earth error simulation, supporting evaluation of EVSE response to interruption of the ground conductor
- PE pre-test function, providing visible indication when voltage above approximately 30 V is detected on the protective-earth conductor
- GFCI test function, using a 2 kΩ test resistance between L1 and PE with a 40 ms time limit
- Charging-voltage measurement terminals, allowing connection of an appropriate multimeter for EVSE voltage checks
- Control-pilot signal output terminals, allowing waveform and duty-cycle assessment with suitable test equipment
- IP54 FEV100 enclosure, supporting field testing in dusty and damp service environments
- CAT II 250 V measurement terminals, with IEC 61010-based safety design
Benefits
- Test both standard Type 1 and compatible Tesla AC charging stations with one EVSE adapter kit.
- Verify charging states, protective earth and GFCI operation without transporting a vehicle to the site.
- Troubleshoot EVSE control-pilot behaviour using external multimeters or oscilloscopes connected to the adapter.
- Perform post-installation verification and scheduled maintenance using repeatable simulated EV states.
- Expand service capability with dedicated connector assemblies for two common AC charging interfaces.
Why Choose the Fluke FEV100/TY1 & TSL Kit (5348051 / 39749-74)?
The FLK-FEV100/TY1 & TSL kit combines Fluke's FEV100 EVSE simulator with dedicated Type 1 and Tesla-type connector cables for AC charging-station testing. John Morris Group supplies the verified 39749-74 configuration for electricians, EVSE installers and maintenance technicians performing safety checks, commissioning and troubleshooting.
Important Compatibility Note
The included Tesla-type connector is intended for compatible Tesla AC charging stations. It must not be used with Tesla Superchargers or other DC fast-charging stations.

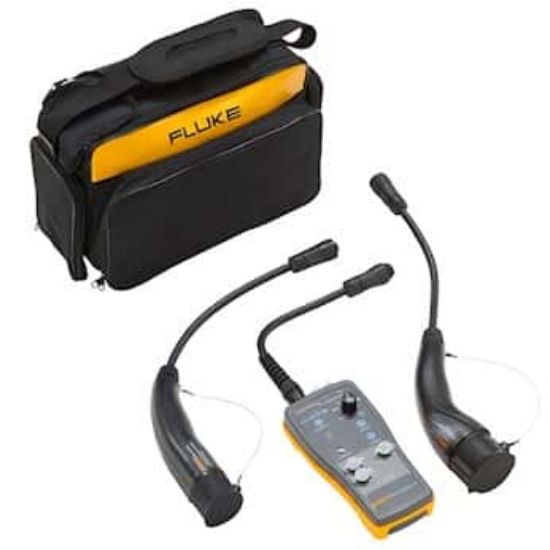

Included Accessories
- Fluke FEV100/BASIC EVSE Test Adapter
- Fluke FEV-CON/TY1 Type 1 Connector and Cable
- Fluke FEV-CON-TSL Tesla-Type Connector and Cable
- Soft carrying case
- User manual
